Axis TU8004 Midspan

Name: Axis TU8004 Midspan
SKU: GMQO195033595
Availability: InStock

Price

SKU:

GMQO195033595

Category: Electronic accessories

Shopping information

Description

90W, 57V, PoE

Description

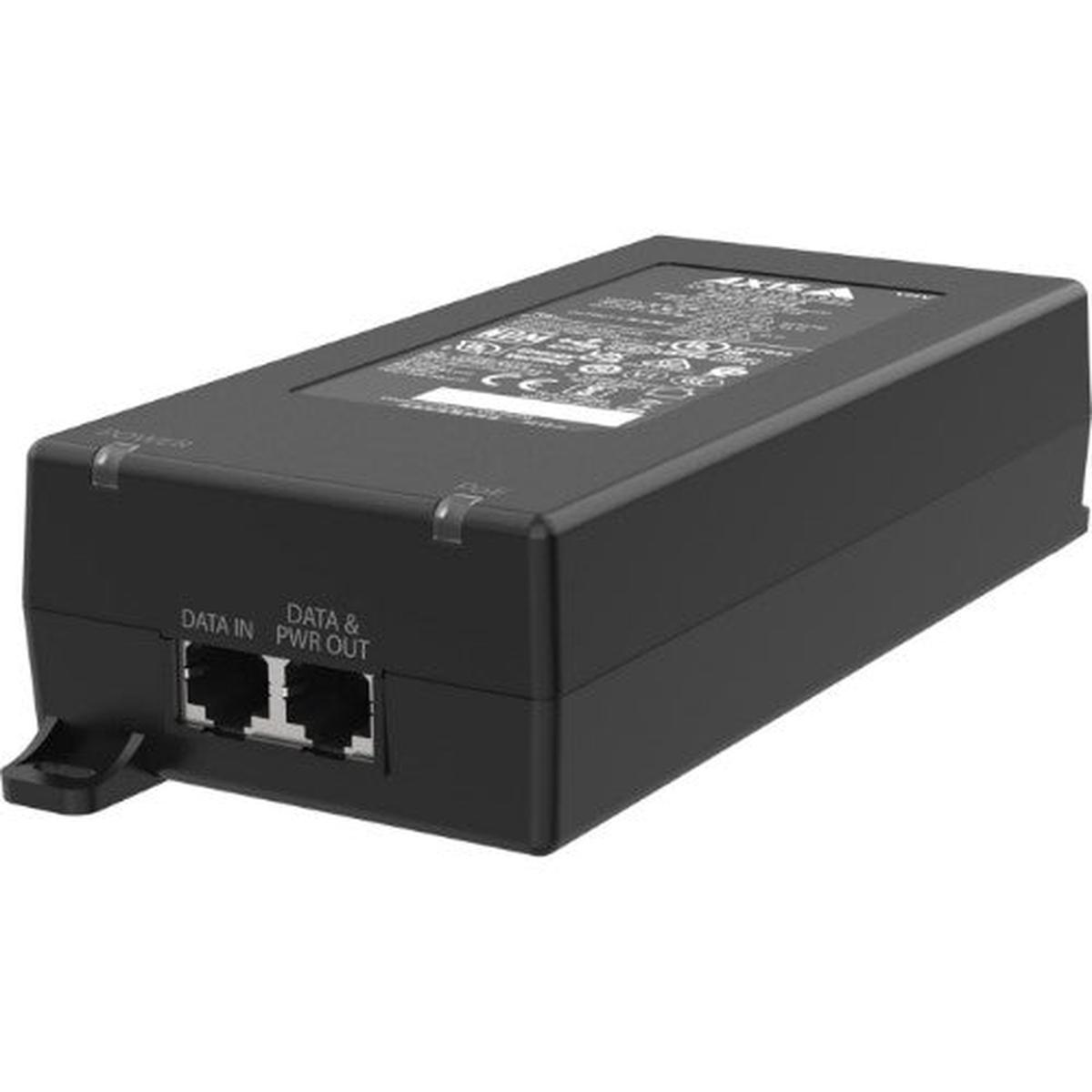

AXIS TU8004 90 W Midspan

AXIS TU8004 is a single port 90 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.

Specifications

Features
Housing material	Plastic
Brand compatibility	Axis
Type	Midspan
Product colour	Black
Certification	IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Networking standards	IEEE 802.3af, IEEE 802.3bt
Number of inputs	1 inputs
Number of outputs	1 outputs
Ports & interfaces
Number of inputs	1 inputs
Number of outputs	1 outputs
Connectivity technology	Wired
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
Power
Output voltage	57 V
Input voltage	100 – 240 V
Rated power	90 W
Input frequency	50/60 Hz
Power consumption (typical)	64.3 W
Power consumption (max)	91.7 W
Power source type	PoE
Technical details
Type	Midspan
Doesn’t contain	Halogen, PVC
Weight & dimensions
Width	3.15″ (80 mm)
Weight	17.6 oz (500 g)
Height	1.73″ (44 mm)
Depth	6.54″ (166 mm)
Colour
Product colour	Black
Packaging content
Quick installation guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 – 90%
Storage temperature (T-T)	-20 – 70 C
Storage relative humidity (H-H)	5 – 90%
Operating temperature (T-T)	-20 – 65 C
Certificates
Certification	IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
