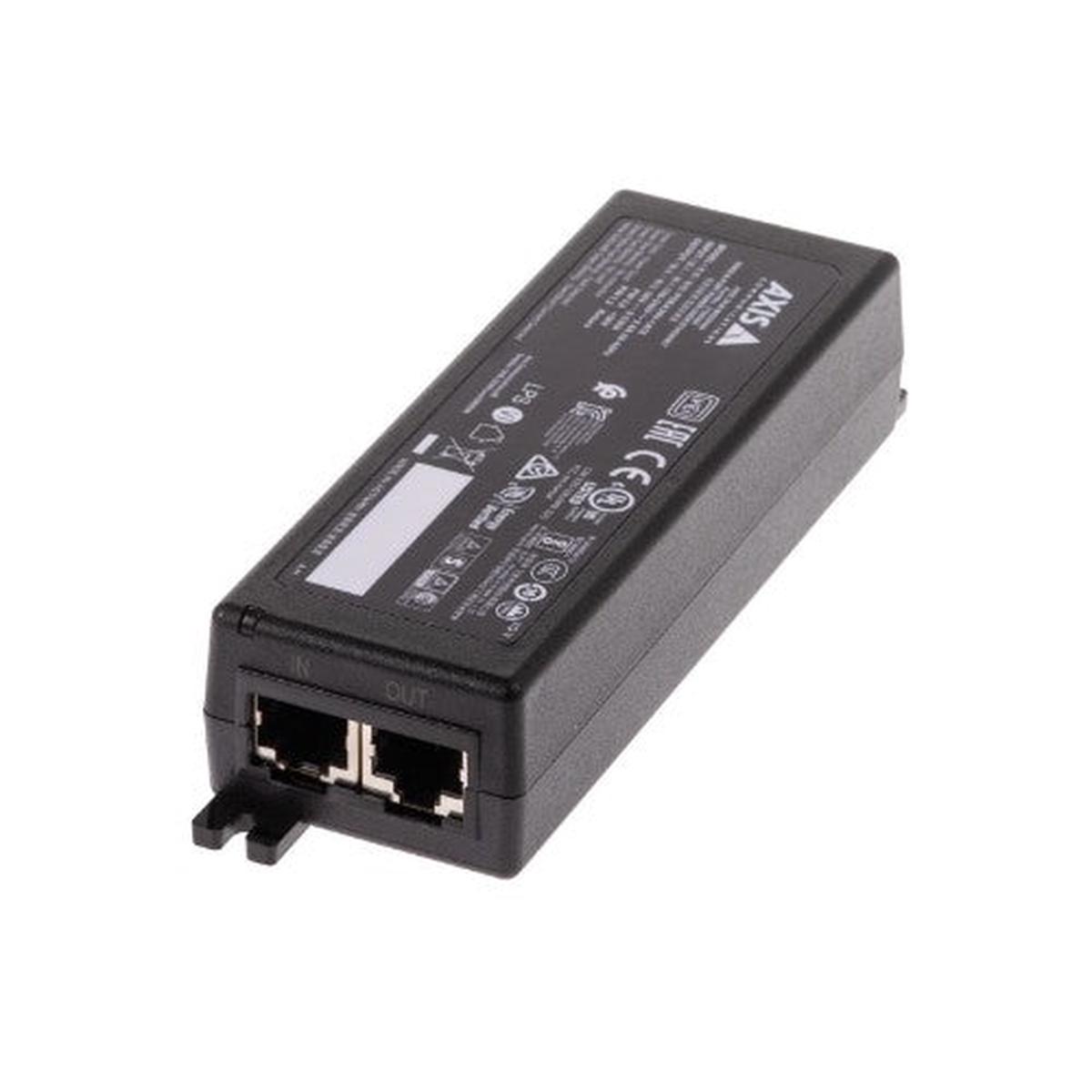

Axis 02172-004 security camera accessory Midspan

Name: Axis 02172-004 security camera accessory Midspan
SKU: GMQO195033380
Availability: InStock

Price

SKU:

GMQO195033380

Category: Electronic accessories

Shopping information

Description

30 W Midspan, indoor, 240 V AC, IEEE 802.3af and IEEE 802.3at, black

Key Features

10/100/1000 Mbps; 100 to 240 V AC; IEEE 802.3af and IEEE 802.3at; Plug-and-play

Description

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.

Specifications

Features
Housing material	Plastic
Brand compatibility	Axis
Type	Midspan
Placement supported	Indoor
Product colour	Black
LED indicators	Yes
Number of connectors	2
Ergonomics
Number of connectors	2
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power
Output voltage	56 V
Input voltage	100 – 240 V
Rated power	30 W
Input frequency	47 – 63 Hz
Power source type	PoE
Technical details
Type	Midspan
Placement supported	Indoor
Doesn’t contain	Halogen, PVC
Warranty period	3 year(s)
Weight & dimensions
Width	1.81″ (46 mm)
Weight	5.11 oz (145 g)
Height	1.18″ (30 mm)
Depth	5.52″ (140.1 mm)
Colour
Product colour	Black
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick installation guide	Yes
Packaging content	Installation guide, Cable Mains IEC-C13
Operational conditions
Storage temperature (T-T)	-40 – 75 C
Operating temperature (T-T)	-20 – 55 C
