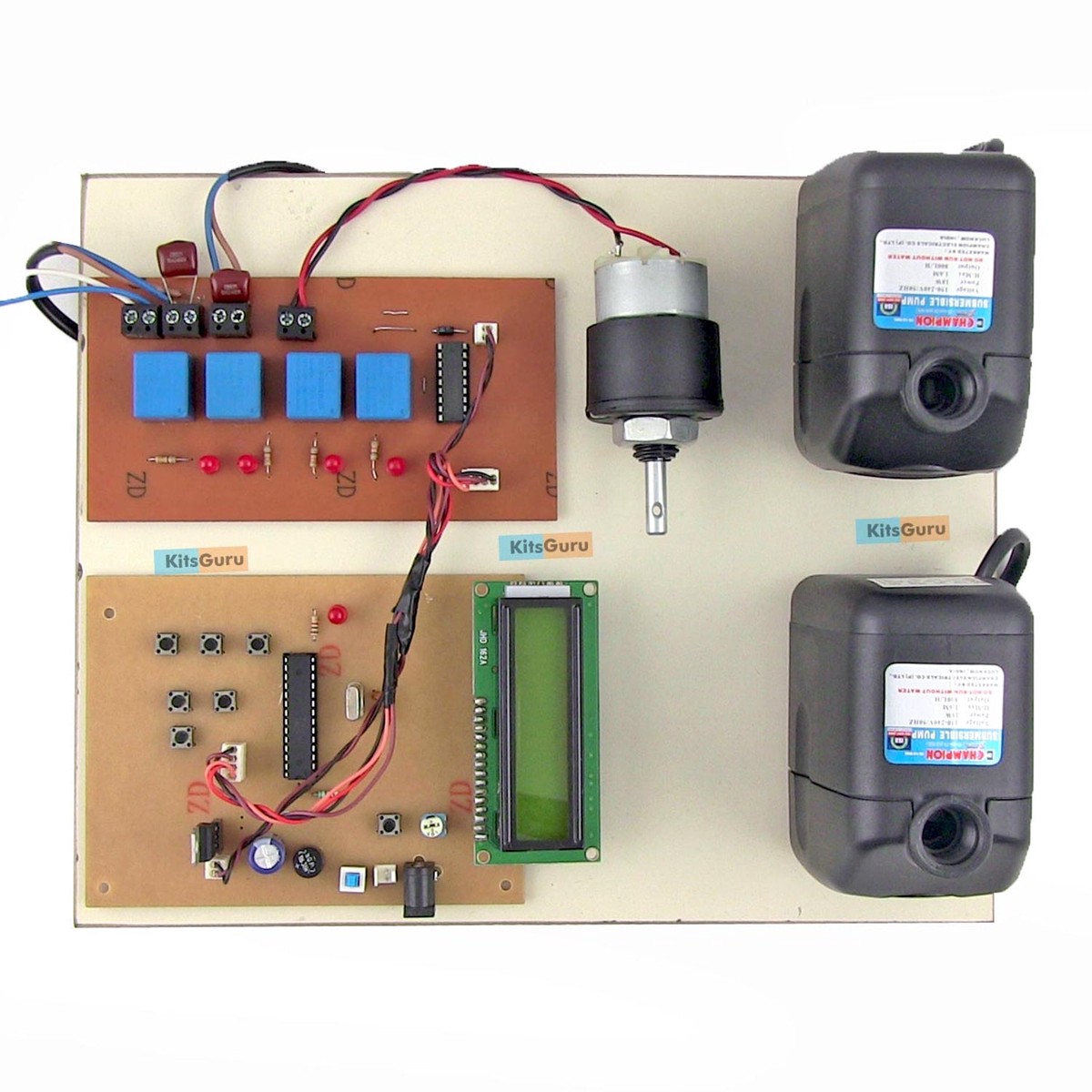

The main objective of the KIT is designing automatic washing machine logic for programmable sequential switching of machine operations automatically once activated using an embedded system based on a microcontroller system. The brain of the project is a microcontroller. There is also an LCD interface to check what is going in automatic washing machine design.

Automatic washing machine control is a hardware design in which in automatic mode the machine operations will be managed in sequential order and for a set time. In manual mode, the operations can be turned on/off manually. In setting mode, the time for each operation can be increased or decreased. For configuring the modes the switches are provided for control.

• There are switches to control and set the system operation.
• This signal is given to the microcontroller and it is programmed to fulfill the above requirements.
• The output of the microcontroller is given to ULN2803 relay driver.
• The relay finally selects the device to be turned on/off.

Physical Attributes

• Dimensions (cm) L x W x H : 28 x 24 x 8
• Weight (gm): 1000
