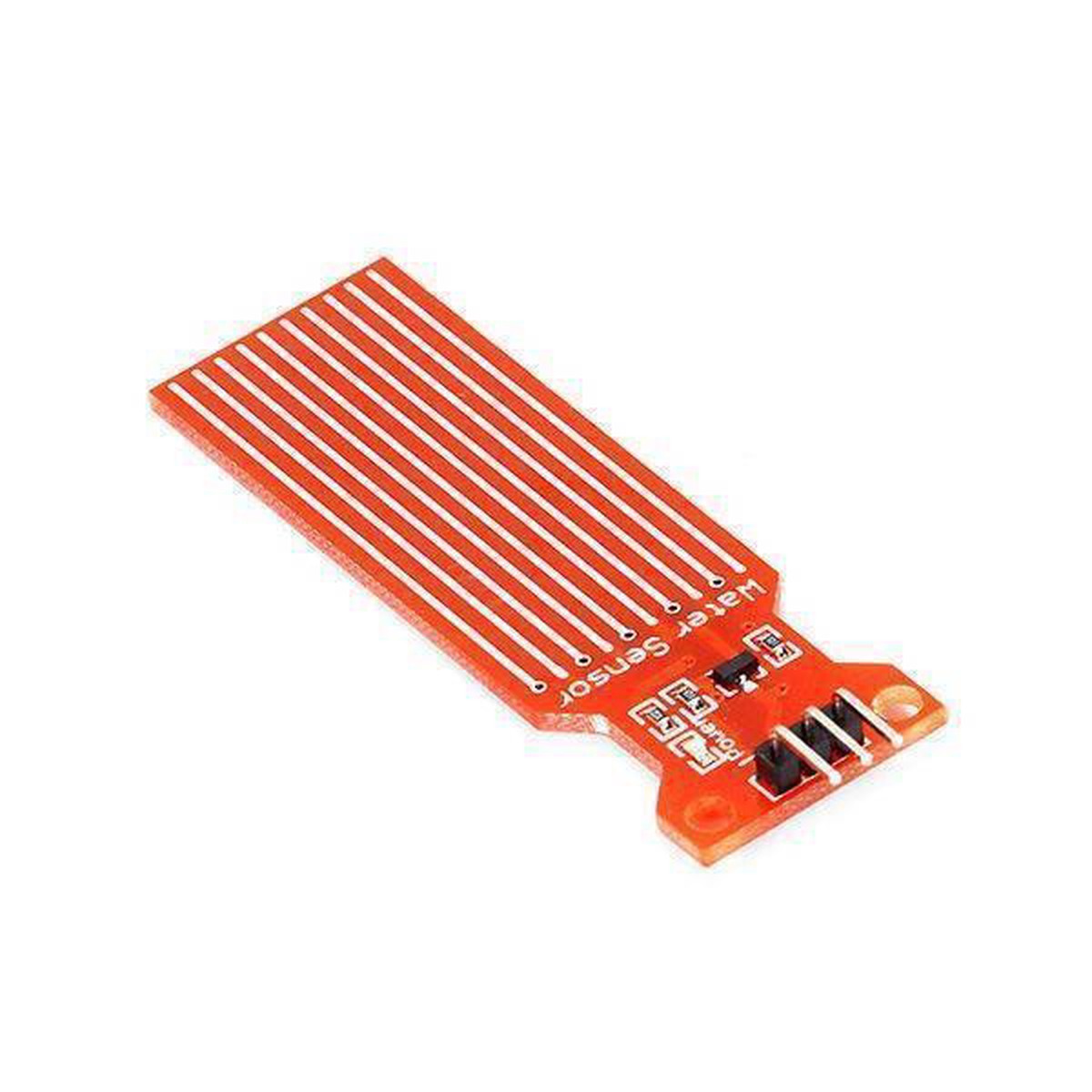

Water Level Sensor Depth of Detection Water Sensor for Arduino has Operating voltage DC3-5V and Operating current less than 20mA. The Sensor is the Analog type which produces analog output signals according to the water pressure with its Detection Area of 40x16mm.The Water Level Sensor is an easy-to-use and cost-effective with high level/drop recognition sensor by having a series of parallel wires exposed traces measured droplets/water volume to determine the water level. Easy to complete water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect.

Specifications:

1. Operating voltage: DC3-5V
2. Operating current: less than 20mA
3. Sensor Type: Analog
4. Detection Area: 40mmx16mm
5. Production process: FR4 double-sided HASL
6. Operating temperature: 10-30 Humidity: 10% -90% non-condensing
7. Dimensions: 60mmx20mm

Package includes:

• 1x Arduino Water Level Sensor
