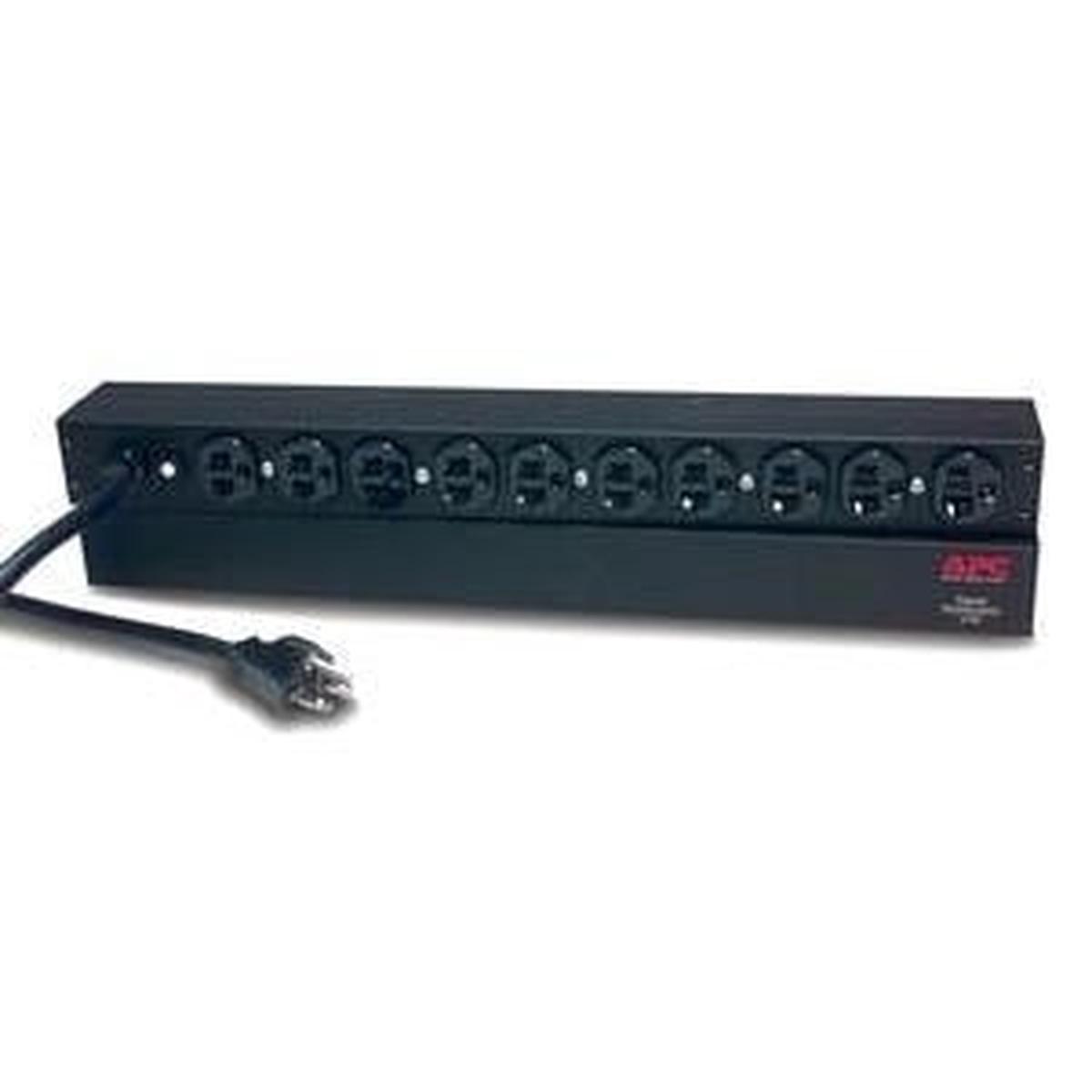

APC Rack PDU, Basic, 1U, 20A, 120V power distribution unit (PDU) Black

Name: APC Rack PDU, Basic, 1U, 20A, 120V power distribution unit (PDU) Black
SKU: GMQO195032258
Availability: InStock

Price

SKU:

GMQO195032258

Category: Electronic accessories

Shopping information

Description

Basic Rack PDU , Input: 120V , Input Connections: NEMA 5-20P , Cord Length: 12 feet ( 3.66 meters ) , Output: 120V , Output Connections: NEMA 5-20R

Description

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Specifications

Design
Product colour	Black
Certification	cUL Recognized,CSA,UL 1363,UL Recognized, RoHS
Ports & interfaces
Output connections	10x NEMA 5-20R
Input connection type	NEMA 5-20P
Features
Cable length	144.1″ (3.66 m)
Certification	cUL Recognized,CSA,UL 1363,UL Recognized, RoHS
Ergonomics
Cable length	144.1″ (3.66 m)
Power
Nominal input voltage	120 V
Nominal output voltage	120 V
Maximum total current draw per phase	20 A
Maximum input current per phase	20 A
Load capacity	2400 VA
AC input frequency	50 – 60 Hz
Certificates
Certification	cUL Recognized,CSA,UL 1363,UL Recognized, RoHS
Operational conditions
Operating temperature (T-T)	-5 – 45 C
Storage temperature (T-T)	-25 – 65 C
Weight & dimensions
Weight	5.51 lbs (2.5 kg)
Width	17.6″ (447 mm)
Depth	2.24″ (57 mm)
Height	1.73″ (44 mm)
