PNP No receiver installed or Dji Fpv transmitter.
or you can install a receiver of your choice to match your transmitter.

Descriptions

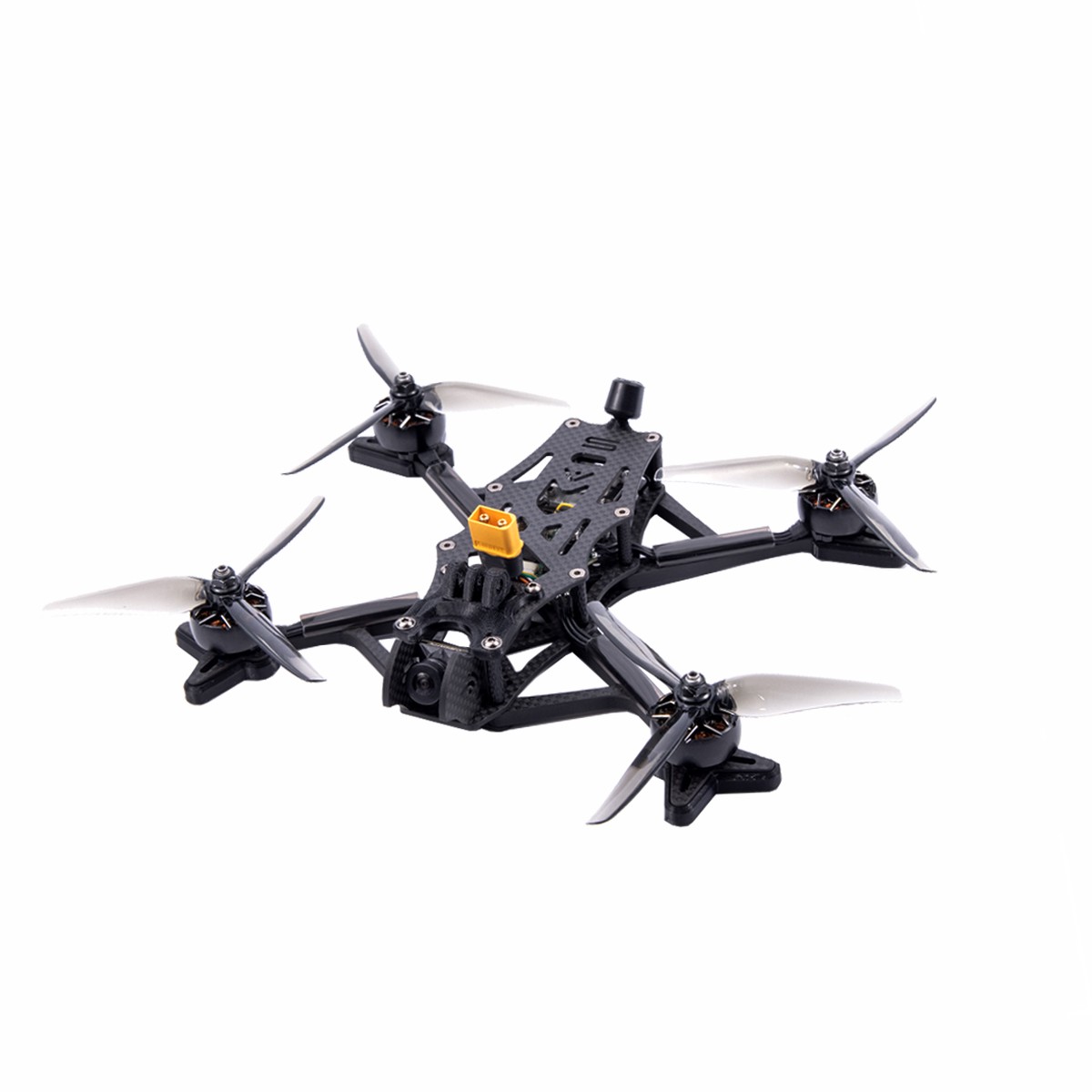

The AOS 5 V2 is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 5 V2 allows you to run less filtering, with less associated delay, and increase your PID gains far higher than any other frame in its weight class. Get ready for the most responsive 5″ quad you have ever flown!

Highlights

Topology-optimized truss design arms
Caddx Vista Nebula Pro System
2.5mm Top and Bottom Plates
Optimized Camera Protection
32×32 GoPro Mounting
Built by iFlight
5″ BNF Drone
Low Vibration

Specifications

Product NameAOS5 V2 HD
FC: BLITZ F722
ESC: BLITZ E45 55A 4-IN-1 ESC
Video Transmission: Nebula Pro Vista
Frame: 255mm wheelbase
Motor: XING2 2207 motors
Prop: Nazgul 5 inch propellers
Takeoff WeightApprox. 620 g
Dimensions (LWH)18018080 mm
Diagonal Distance245mm
Max Speed130 Km/h (Manual Mode)
Maximum Takeoff Altitude5000 m
Max Hover TimeApprox. 8 mins
Max Flight Distance5 km
Max Wind Speed Resistance130 Km/H (Level 4)
Operating Temperature Range-10 to 40 C (14 to 104 F)
Antennas: 1 Antenna
GNSSN/A

Video Transmission

Product Name: Nebula Pro Vista
FPV Cam :Nebula Pro
Dimensions:
Runcam Link: L19mm*W19mm*H19mm
FPV Cam: L29mm * W29mm * H13mm
Communication Frequency: 5.725-5.85GHz
Transmission Power (EIRP): FCC/SRRC/MIC: <20dBm; CE: <14dBm
Input Volts14-26.4 V
Weight: 23.5 g
Image Sensor: 1/3.2
Resolution:720P@120fps
LENS FOV D:155 H:125 V:96
Coaxial Cable: 120 mm
Audio TransmissionYes

Packing List

1 x AOS5 V2 6S HD BNF
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)

Important

Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
