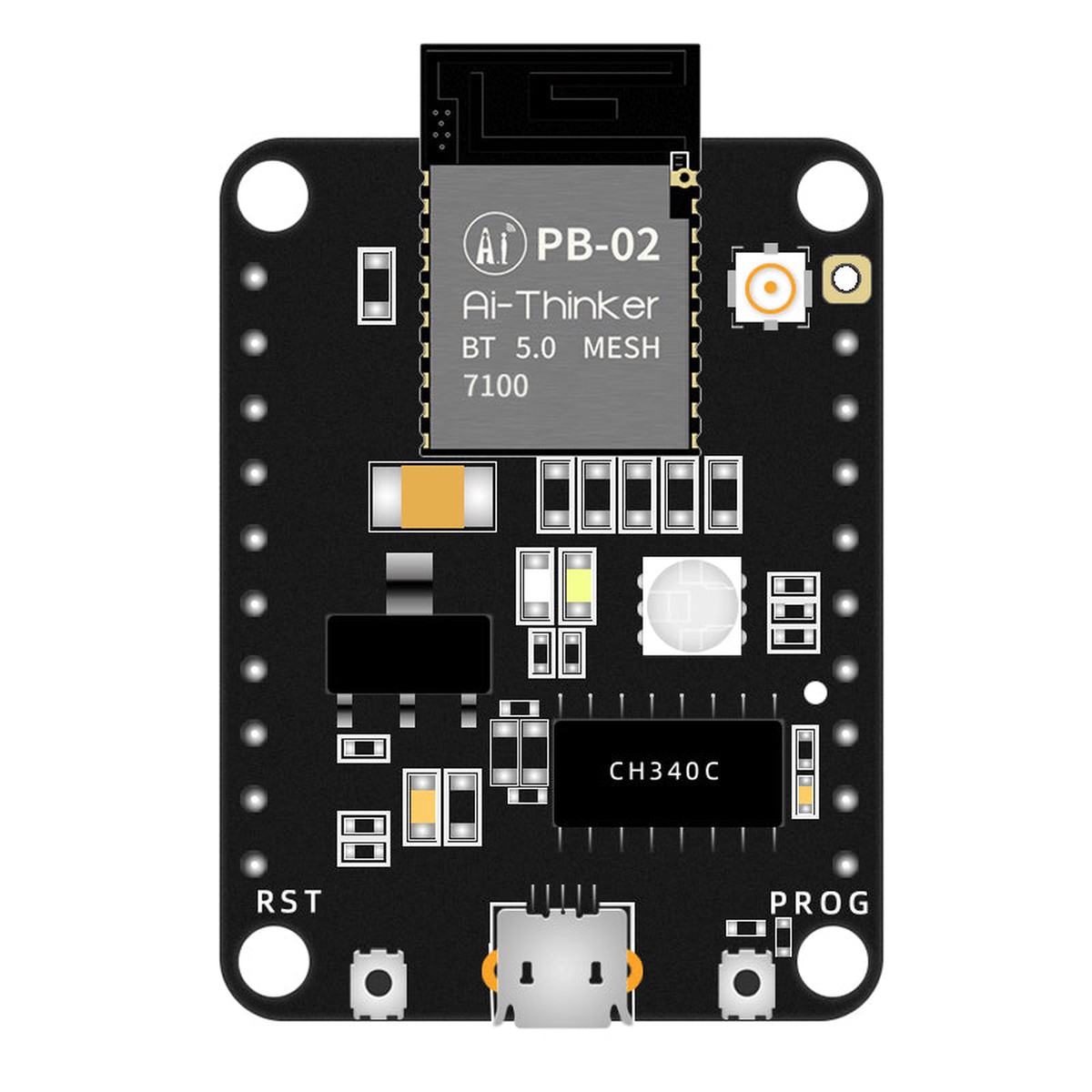

PB-01/02-Kit development board is an intelligent lighting development board designed for PB-01/02 modules. It needs external antenna with IPEX seat, PB-02 with its own pcb antenna. There are six PWM, which can be adjusted by itself RGB colorful lamp and two cold and warm lamp beads. All modules can be used to lead out by pin header, convenient for developers to develop and debug; The integration of rich information, including AT commands, SDK secondary development, support Bluetooth mesh network configure, as well as Android / IOS APP control and WeChat Mini Program control, but also support Tmall genie voice direct connection control; multiple development boards interconnected, can be used to Mesh networking debugging, 2.54 mmpinheader to lead out all GPIO/PWM/SPI/ADC interfaces, free to match peripherals. UART interface supports firmware burning, Keil5 software development, simple and fast.

Features:

• Module : PB-01/02
• BLE5.0, support Mesh
• Interface Type: Standard micro USB+ 2.54mm Spacing Pin header
• PWM/SPI/GPIO/ADC interface
• Own R/G/B triads and cold/warm beads
• Own reset button and 1 user-defined key
• Support Tmall Genie Voice Configure, Android / IOS APP Control and WeChat Mini Program Control

Specifications:

• Model: PB-01/02-KIT development board
• Package: DIP-20 (2.54 mm spacing pin header)
• Dimension: 30mm(W)*40mm(H) 0.2 mm (PB-01-KIT); 30mm(W)*45.5mm(H) 0.2 mm (PB-02-KIT)
• Wireless Standard: Bluetooth 5.0,support Mesh
• Frequency Range: 2400 ~ 2483.5MHz Transmit power Maximum 10dBm
• Receiving Sensitivity: Minimum -932dBm
• Interface: PWM/SPI/GPIO/ADC
• Operating Temperature: -40C ~ 85C
• Storage Temperature: -40C ~ 125C,<90%RH
• Power Supply Range: Micro USB supply voltage 4.75V ~ 5.25V, recommend 5.0V
• Power Consumption: Deep sleep mode: 0.7 uA, IO interface wake-up (only module) shallow sleep mode: 2 uA, RTC wake-up (only module); Full load mode (TX: 10dBm): 25mA (only module) RX mode: 7mA (only module); Development Board PCB: 4mA
