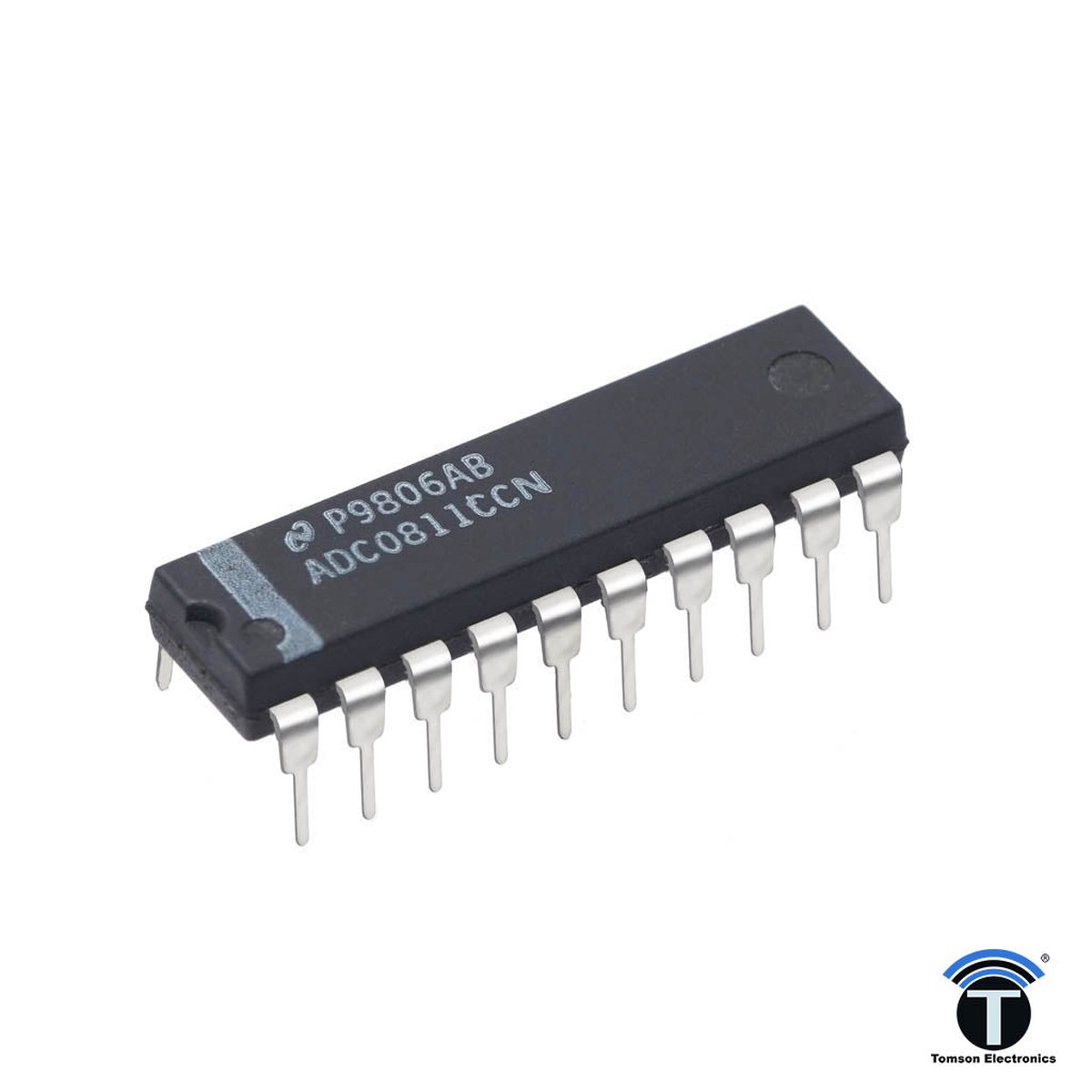

ADC 0811

The ADC0811 is an 8-Bit successive approximation A/D converter with simultaneous serial I/O. The serial input controls an analogue multiplexer which selects from 11 input channels or an internal half scale test voltage. An input sample-and-hold is implemented by a capacitive reference ladder and sampled data comparator. This allows the input signal to vary during the conversion cycle. Separate serial I/O and conversion clock inputs are provided to facilitate the interface to various microprocessors.

ADC 0811 Features

• Separate asynchronous converter clock and serial data I/O clock.
• 11-Channel multiplexer with 4-Bit serial address logic.
• Built-in sample and hold function.
• Ratiometric or absolute voltage reference.
• No zero or full-scale adjust required.
• Internally addressable test voltage.
• 0V to 5V input range with single 5V power supply.
• TTL/MOS input/output compatible.
• 0.3 standard width 20-pin dip or 20-pin molded chip carrier

specification

• Resolution 8-Bits
• Total unadjusted error g (/2LSB and g 1LSB
• Single supply 5VDC
• Low Power 15 mW
• Conversion Time 32 mS

Developer :ADC0811_Datasheet
