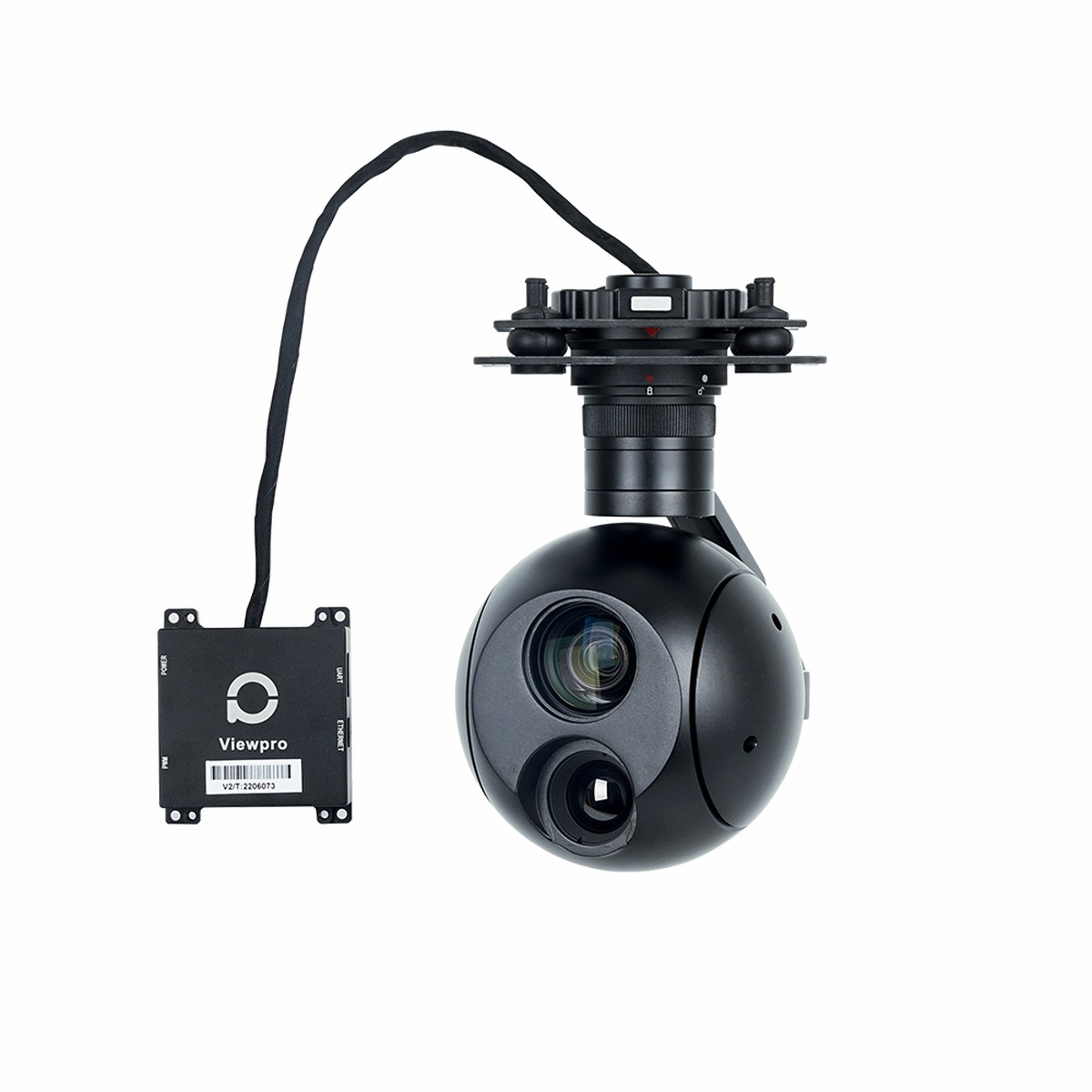

A10T 10x Dual Sensor Light Weight AI Tracking Camera

Name: A10T 10x Dual Sensor Light Weight AI Tracking Camera
SKU: US31254794
Availability: InStock

Price

SKU:

US31254794

Category: Electronic Components

Shopping information

Description

Viewpro 10x Dual Sensor Light Weight AI Tracking Camera

A10T is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom and a 19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of bettermetal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking. It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.

Specification

Hardware Parameter
Working voltage	12V
Input voltage	3S ~ 6S
Output voltage	5V (connect with PWM)
Dynamic current	630~2000mA @ 12V
Idle current	630mA @ 12V
Working environment temp.	-20~ +60
Output	micro HDMI(1080P 30/60fps) / IP (1080p 25/30fps)
Local-storage	SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format	JPG(1920*1080)
Video storage format	MP4 (1080P/720P 25fps/30fps)
Control method	PWM / TTL / S.BUS / TCP(IP output version)
Gimbal Spec
Mechanical Range	Pitch/Tilt: -4595, Roll: 70, Yaw/Pan: 300 / 360*N (IP output version)
Controllable Range	Pitch/Tilt: -4090, Yaw/Pan: 290 / 360*N (IP output version)
Vibration angle	Pitch/Roll: 0.02, Yaw0.02
One-key to center
Camera spec
Imager Sensor	1/3″ Panasonic CMOS Sensor
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.48MP
Lens optical zoom	10x, F=5.1~51mm
Digital zoom	32x
Angle of View (D,H,V)	D: 68(Wide end) ~ 6.7 (Tele end)
	H: 54(wide end) ~ 4.9(tele end)
	V: 31(wide end) ~ 4.0(tele end)
Sync system	Progressive Scan
Sync. System Internal	Internal
S/N ratio	more than 50dB
Min illumination	Color : 0.5 lux , BW : 0.1lux Color DSS : 0.125 lux , BW DSS : 0.025 lux
Gain Control (AGC)	Off / On
White balance	Auto / One Push / Manual / Indoor / Outdoor
Shutter speed	1/30(25) ~ 1/30,000 sec
Focus	Auto / One Push / Manual
Iris	0 ~ 20 steps
Exposure	Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog	Yes
IR Thermal Imager Spec
Focus Length	19mm
Coating Film	DLC
Horizontal FOV	22.9
Vertical FOV	18.4
Diagonal FOV	29.0
Detective Distance (Man: 1.8×0.5m)	792 meters
Recognize Distance (Man: 1.8×0.5m)	198 meters
Verified Distance (Man: 1.8×0.5m)	99 meters
Detective Distance (Car: 4.2×1.8m)	2428 meters
Recognize Distance (Car: 4.2×1.8m)	607 meters
Verified Distance (Car: 4.2×1.8m)	303 meters
Working mode	Uncooled VOx long wave (8m~14m) thermal imager
Detector pixel	640*512
Pixel size	12m
Focusing method	Athermal prime lens
NETD	[email protected] @25
Color palette	White, iron red, pseudo color
Digital zoom	1x ~ 8x
Sync correct time	Yes
EO / IR Camera Object Tracking
Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	<32 pixel/frame
Object memory time	100 frames
EO Camera AI Recognition Performance
Targets type	Car and human
Simultaneous detection quantity	10 targets
Min contrast ratio	5%
Min target size	55 pixel
Car detection rate	85%
False alarm rate	10%
Packing Information
N.W.	539g (Viewport version)
Product meas.	117.292154.1mm(Standard version)/ 117.292159.8mm(Viewport Version)
Accessories	1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
