Key Specifications

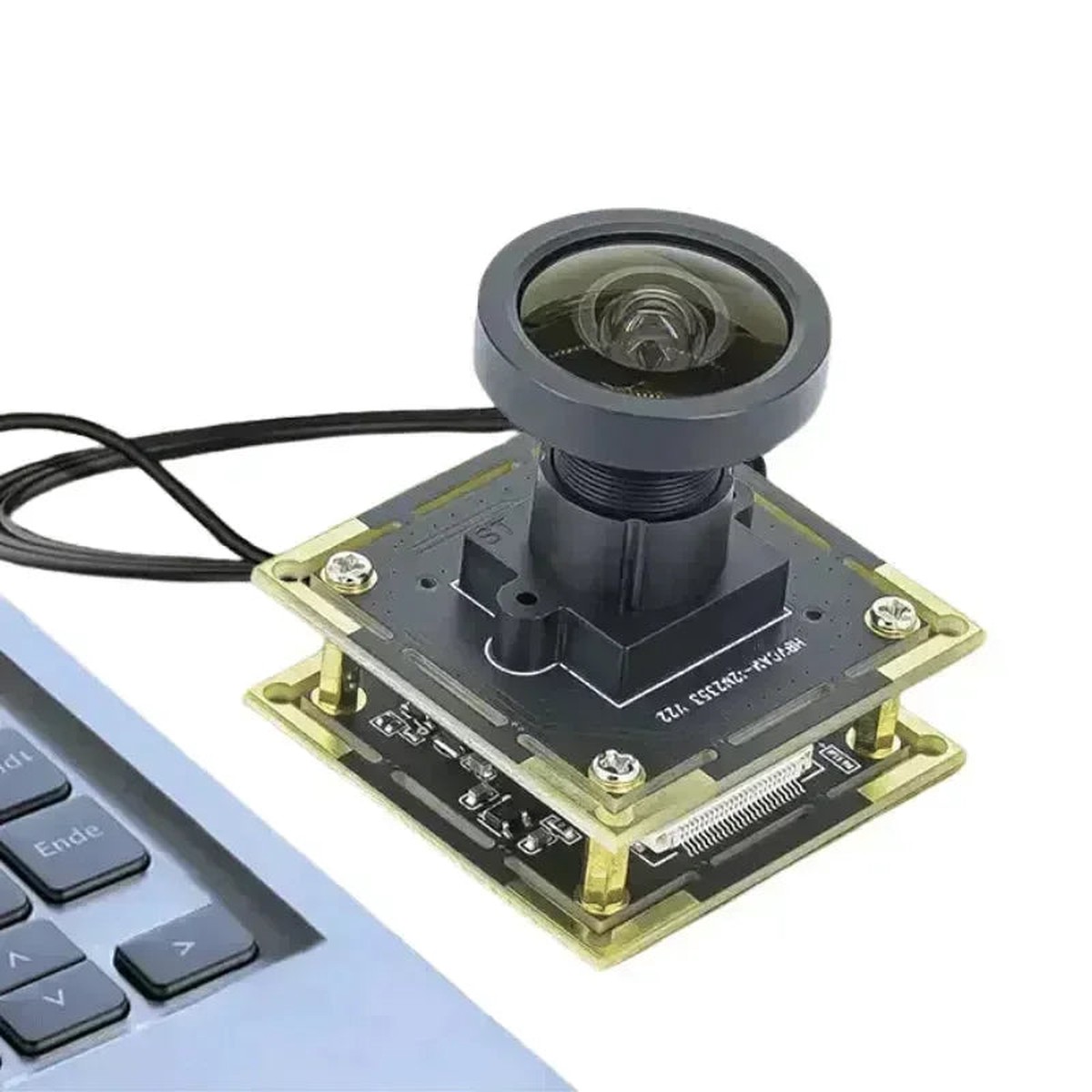

• Module No: HBVCAM-4K2425 V11

• Module Size: 38mm 38mm 35.90mm0.5MM

• Temperature (Operation): -30C to 70C

• Temperature (Stable Image): 0C to 50C

• Assembly Technique: SMT (ROSH)

• Focus: Fixed

• Object Distance: 30CM-Infinity

• Resolution: 600LW/PH (Center)

• PCB Printing Ink: Black

• Interface: USB 2.0

• Power Supply: USB bus power

• Supply Voltage: DC 5V5%

• Maximum Power Consumption: 890 mW

• Operating System Required: Win XP/Win 7, 8 / Vista / Android 4.0 / Mac / Linux with UVC

• Sensor: IMX274 (1/2.5)

• Sensor Package: CSP, Bare Die

• Maximum Resolution: 38402160

• Sensitivity: 760mV/lux-sec

• Pixel Size: 1.62m 1.62m

• Maximum Image Transfer Rate:

  • MJPEG 1280720 120FPS / YUY2 1280720 10FPS;

  • MJPEG 19201080 120FPS / YUY2 19201080 5FPS;

  • MJPEG 20481536 30FPS / YUY2 20481536 1FPS;

  • MJPEG 25921944 30FPS / YUY2 25921944 1FPS;

  • MJPEG 38402160 30FPS / YUY2 38402160 1FPS

• S/N Ratio: 44dB

• Max Dynamic Range: 82dB

• Shutter Type: Electronic rolling shutter

• AGC/AEC/White Balance: Auto

• Output Formats: YUY2/MJPEG

• Microphone: Support

• Lens Construction: 2G2P

• F/No: 2.4

• EFL: 4.2 mm

• FOV: 80

• TV Distortion: <5%

• Relative Illumination (Sensor): 70%

• IR Filter: 65010nm

• Module Package: Anti-electrostatic tray

• Certifications: FCC/CE/ROSH

Features

• Audio Capability: Integrated dual digital microphones for clear and accurate audio capture.

• Flexible Focusing Options: Supports both Auto Focus (AF) and Manual Focus (MF), providing adaptability for different use cases.

• Wide System Compatibility: Works seamlessly with Windows XP/7/8/Vista, Android 4.0 and above, macOS, and Linux systems.

• Driver-Free USB 2.0: Plug-and-play functionality with USB 2.0, no additional drivers required.

Classification

• 100 Degree Non-distortion/manual focus/2.9mmFocal Length

• 80 Degree Non-distortion/Manual Focus/4.2mm Focal Length

• 80 Degree Non-distortion/Auto Focus/4.2mm Focal Length/Large Motor

Package Includes

• Camera Module X1

• Standard 0.5-meter USB Cable X1

Module Mechanical Dimension
