The 74LS244 is an octal buffer and line driver featuring 3-state outputs, designed for driving bus lines and buffering memory and address registers. It is widely used in high-speed logic applications requiring controlled data transmission.

Key Features:

• Octal Buffer/Line Driver: Provides eight independent buffered inputs and outputs.
• 3-State Outputs: Enables multiple devices to share the same data bus.
• High-Speed Performance: Designed for minimal propagation delay and fast data transfer.
• Low Power Consumption: Uses Low Power Schottky (LS) technology for efficient operation.
• Standard TTL Compatibility: Ensures seamless integration with other TTL-based logic systems.

Package Includes:

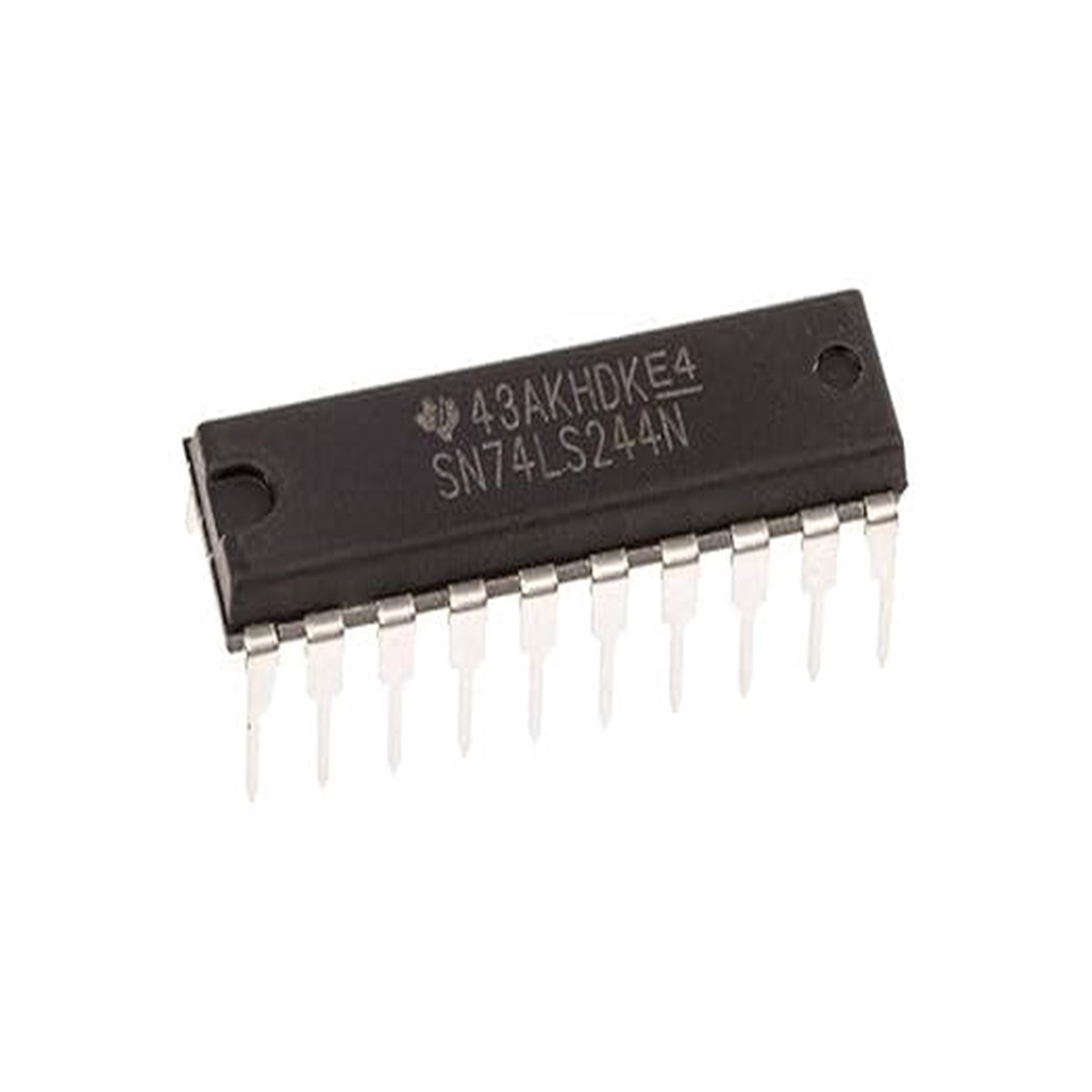

• 1 x 74LS244 Octal Buffer/Line Driver with 3-State Outputs

Specifications:

• Technology Family: LS (Low Power Schottky)
• Supply Voltage: 4.75V to 5.25V
• Input Voltage: 0V to 7V
• High-Level Output Voltage: 2.7V minimum
• Low-Level Output Voltage: 0.5V maximum
• Operating Temperature: 0C to +70C
• Package Type: 20-pin PDIP

Applications:

• Bus Line Driving
• Memory Address Buffering
• Microprocessor Data Interfacing
• Control Signal Processing

Datasheet:

Click here to view the datasheet
