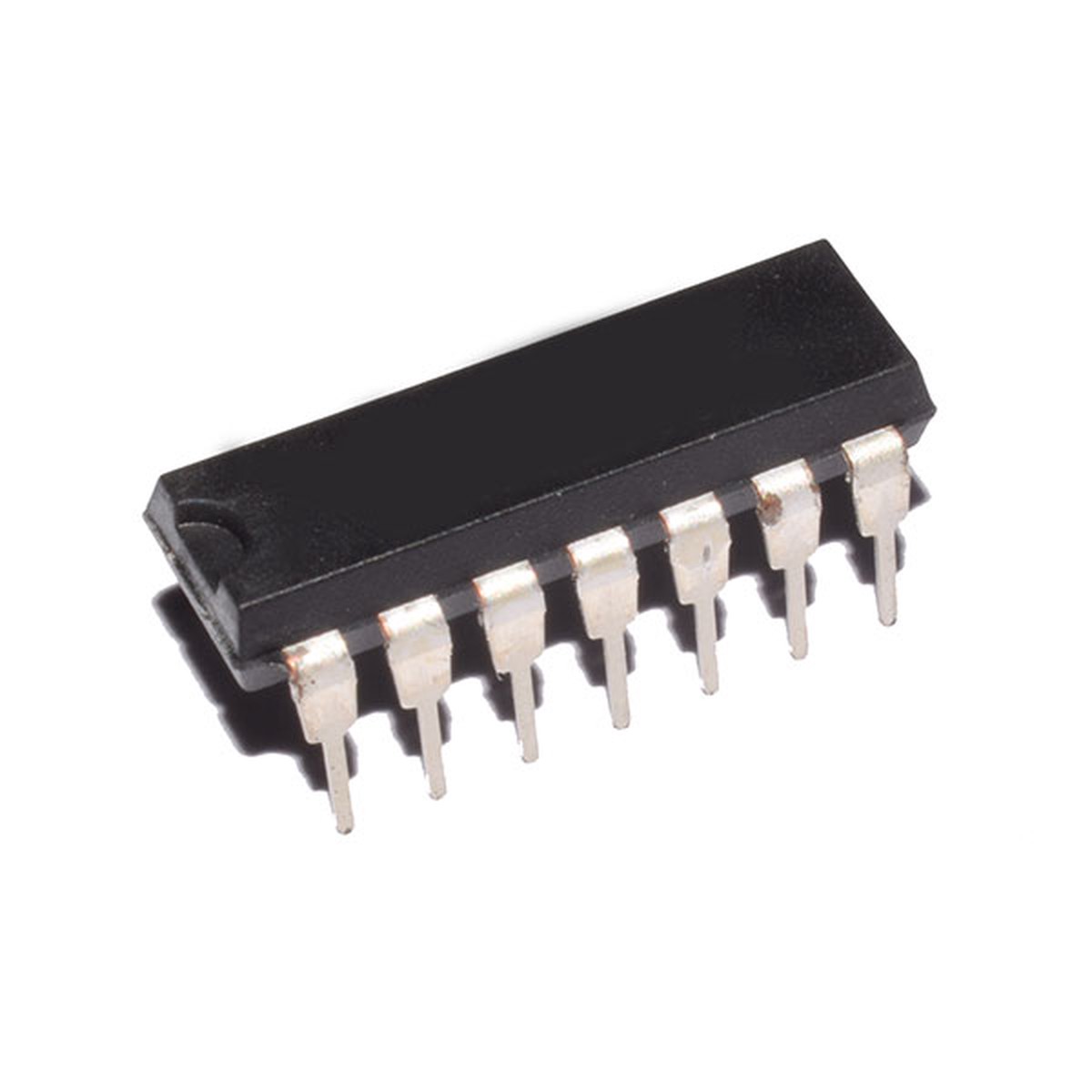

The 74HC30 is a high-speed CMOS 8-input NAND gate IC, designed for use in digital logic applications where multiple-input NAND logic operations are required.

Key Features:

• 8-Input NAND Gate: Performs NAND logic operation with 8 inputs.
• High-Speed CMOS Logic: Optimized for fast switching performance.
• Low Power Consumption: Reduces heat dissipation and improves efficiency.
• Standard TTL Compatibility: Easily interfaces with microcontrollers and digital circuits.
• Compact 14-Pin Package: Ideal for space-constrained circuit designs.

Package Includes:

• 1 x 74HC30 8-Input NAND Gate

Specifications:

• Technology Family: HC (High-Speed CMOS)
• Supply Voltage (VCC): 2V to 6V
• Input Voltage (VIN): 0V to 6V
• High-Level Output Current (IOH): -4 mA
• Low-Level Output Current (IOL): 4 mA
• Propagation Delay: 14ns (typical)
• Operating Temperature Range: -40C to +85C
• Package Type: 14-pin PDIP

Applications:

• Digital Logic Circuits
• Microcontroller Interfaces
• Combinational Logic Design
• Signal Processing
• Industrial Automation
