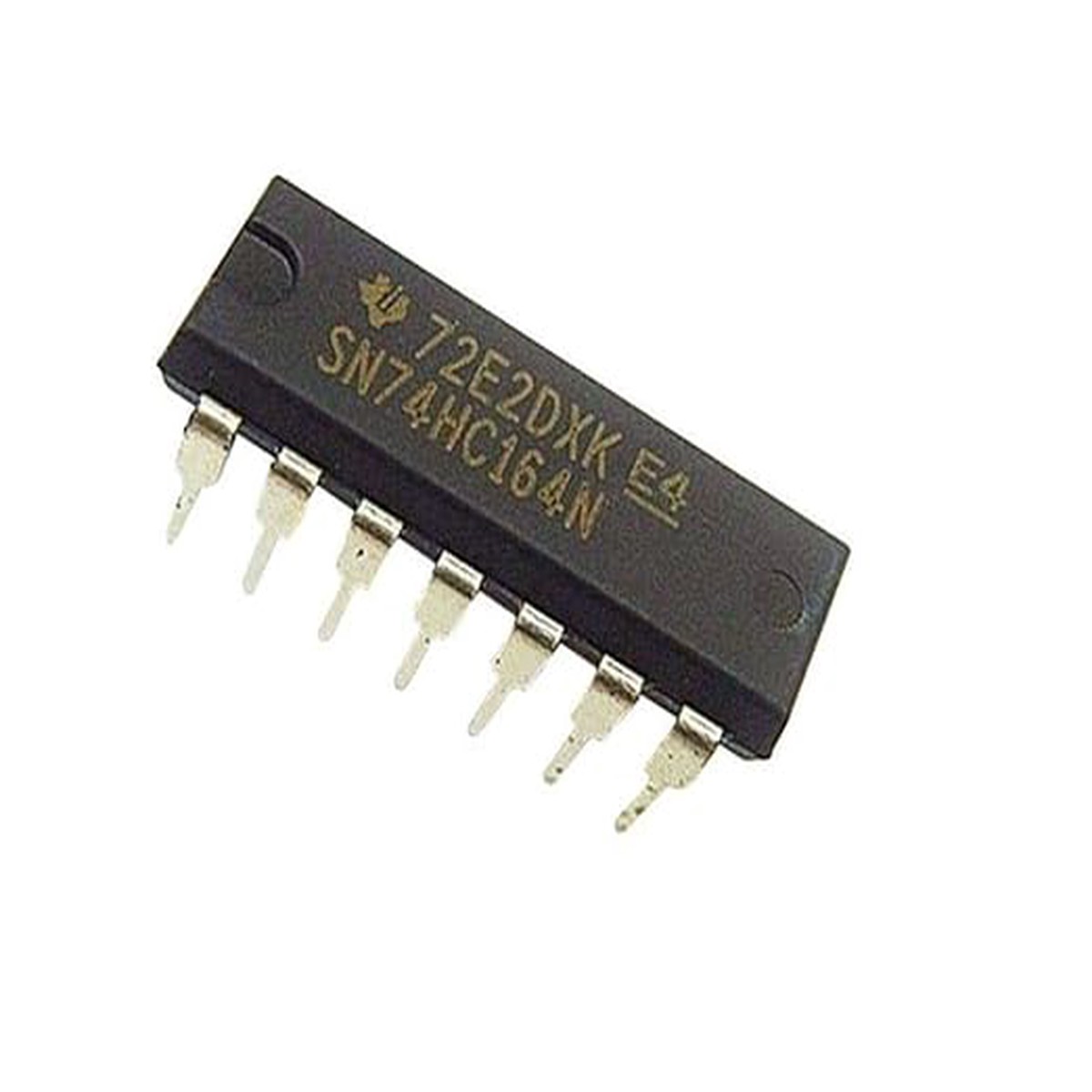

The 74HC164 TI is an 8-bit serial-in, parallel-out shift register designed for high-speed logic applications. It features asynchronous clear and supports serial data input for efficient data storage and transfer.

Key Features:

• 8-Bit Serial-In Parallel-Out: Converts serial input data into an 8-bit parallel output.
• Asynchronous Clear Function: Allows quick resetting of stored data.
• High-Speed CMOS Logic: Optimized for minimal propagation delay.
• Low Power Consumption: Uses advanced CMOS technology for efficient performance.
• Standard TTL Compatibility: Easily interfaces with other TTL and CMOS-based logic systems.

Package Includes:

• 1 x 74HC164 TI 8-Bit Serial-In Parallel-Out Shift Register

Specifications:

• Technology Family: HC (High-Speed CMOS)
• Supply Voltage: 2V to 6V
• Input Voltage: 0V to Vcc
• High-Level Output Voltage: 4.2V minimum at Vcc = 5V
• Low-Level Output Voltage: 0.1V maximum at Vcc = 5V
• Operating Temperature: -40C to +85C
• Package Type: 14-pin PDIP

Applications:

• Data Storage and Transfer
• LED Display Control
• Microprocessor Peripheral Interface
• Clock and Timing Circuits
• Industrial Automation

Datasheet:

Click here to view the datasheet
