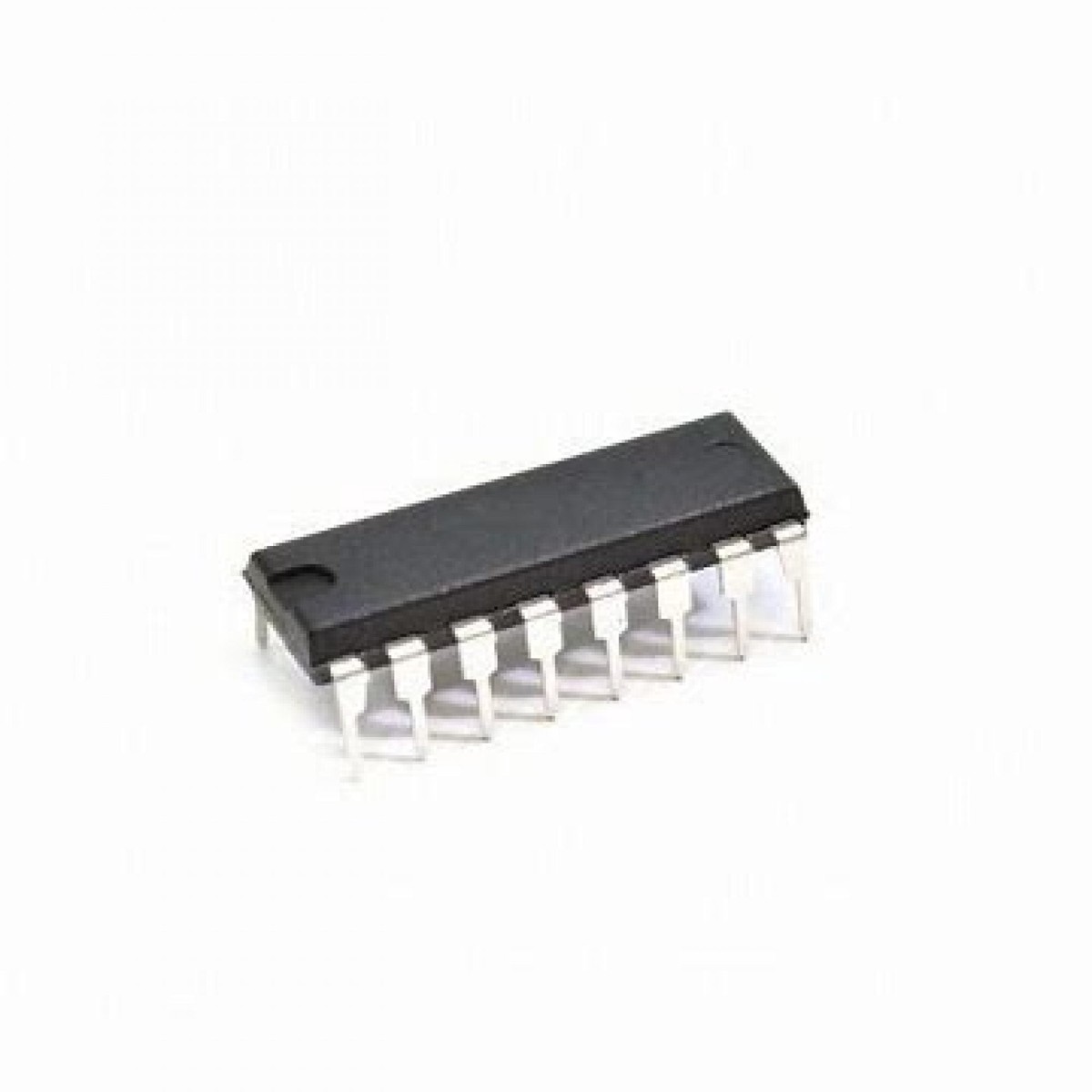

The 74 HC 147 is a high-speed CMOS 10-to-4 priority encoder that converts ten input signals into a 4-bit binary output, prioritizing the highest-order active input.

Key Features:

• 10-to-4 Priority Encoder: Converts 10 inputs into a 4-bit binary output.
• Priority Encoding: Higher-order inputs take precedence.
• High-Speed CMOS Technology: Low power consumption with fast response.
• TTL-Compatible Inputs: Easily interfaces with TTL logic.
• Wide Operating Voltage: 2V to 6V for flexibility.
• Compact 16-Pin Package: Optimized for PCB integration.

Package Includes:

• 1 x 74 HC 147 10-to-4 Priority Encoder

Specifications:

• Technology Family: HC (High-Speed CMOS)
• Supply Voltage: 2V to 6V
• Input Voltage: 0V to 6V
• Propagation Delay: 18ns (typical at 5V)
• Operating Temperature: -40C to +85C
• Package Type: 16-pin PDIP

Applications:

• Data Encoding and Compression
• Interrupt Handling
• Digital Signal Processing
• Binary Code Conversions

Datasheet:

Click here to view the datasheet
