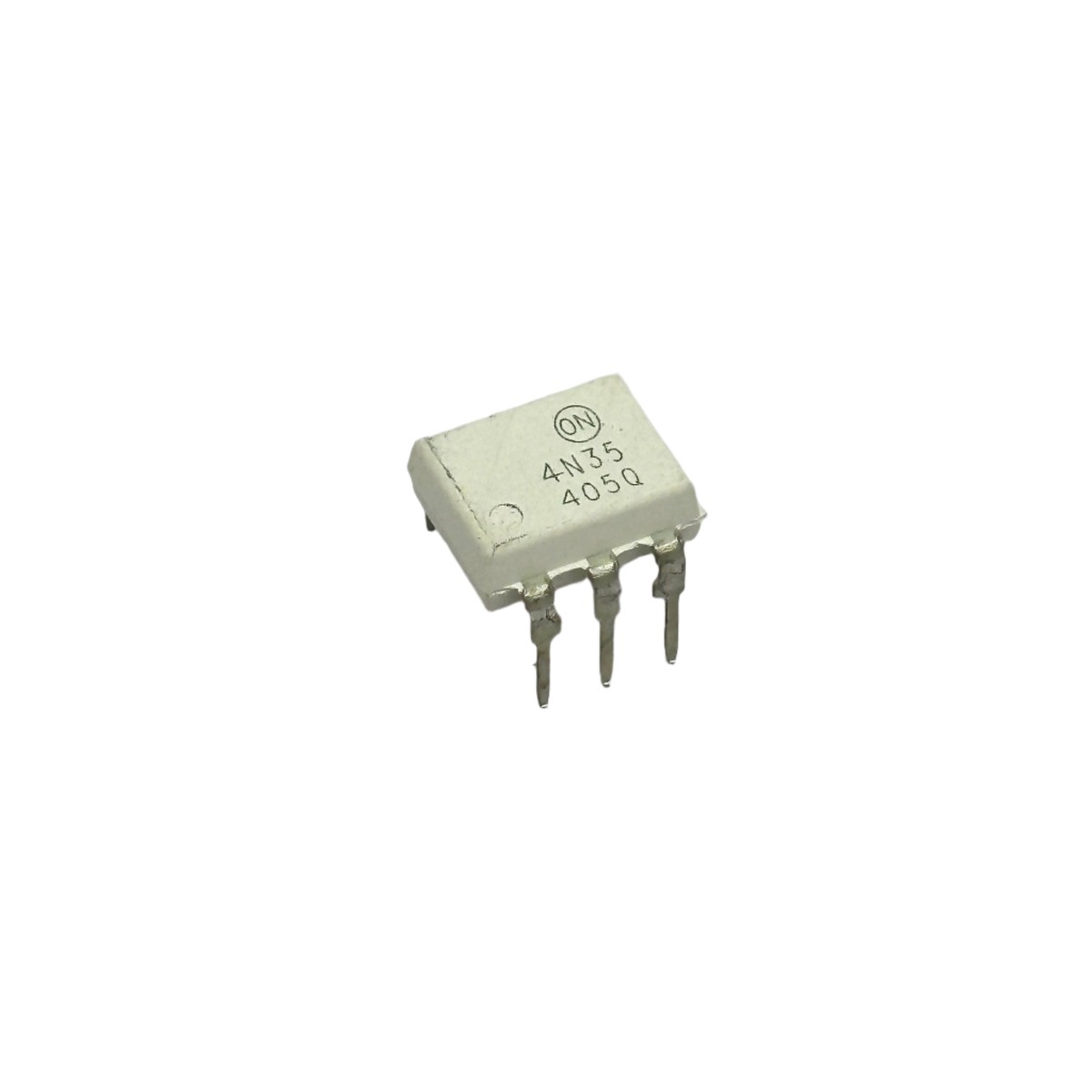

The IC 4N35M ON WHITE is a general-purpose 6-pin phototransistor optocoupler designed for isolating electrical circuits and ensuring signal integrity. It consists of a gallium arsenide infrared LED coupled with a silicon NPN phototransistor, providing reliable performance in various applications.

Key Features:

• High Isolation Voltage: Provides 4,170 Vrms isolation between input and output.
• Fast Response Time: Ensures quick signal transmission with typical turn-on and turn-off times of 2 s.
• Wide Operating Temperature Range: Suitable for environments ranging from -40C to +100C.
• Compact 6-Pin DIP Package: Facilitates easy integration into standard PCB layouts.
• High Current Transfer Ratio (CTR): Minimum of 100% at an input current of 10 mA.

Package Includes:

• 1 x IC 4N35M ON WHITE General Purpose Phototransistor Optocoupler

Specifications:

• Isolation Voltage: 4,170 Vrms
• Input Forward Current (Max): 60 mA
• Collector-Emitter Voltage (Max): 30 V
• Collector Current (Max): 50 mA
• CTR (Min): 100% at IF = 10 mA, VCE = 10 V
• Package Type: 6-Pin DIP
• Operating Temperature Range: -40C to +100C

Applications:

• Switch-mode power supplies
• Microprocessor input interfaces
• Signal isolation in industrial systems
• Telecommunications equipment
• Motor control circuits

Datasheet:

Click here to view the datasheet
