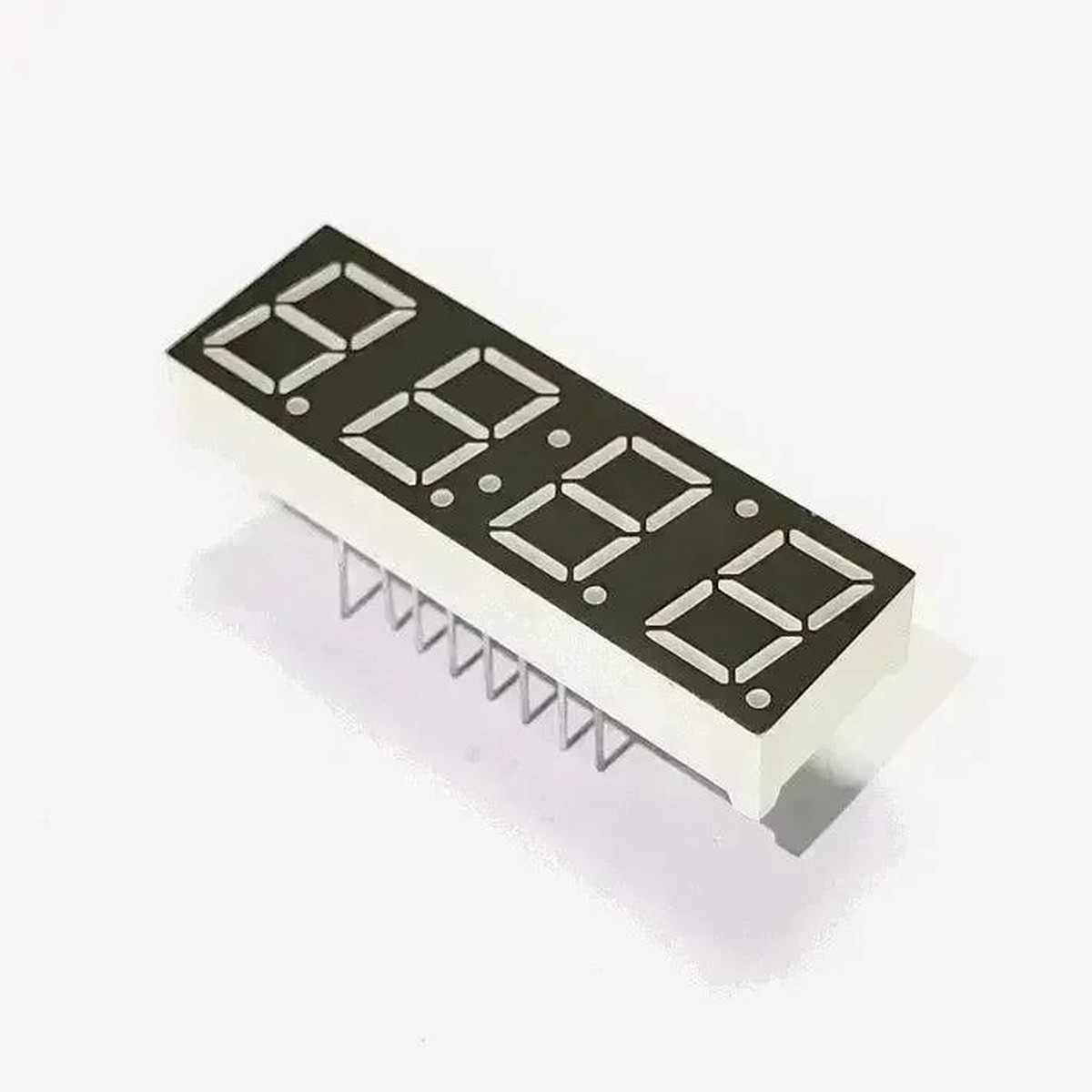

4 digit 7-segment LED Display
Shopping information
Product Describtion
1.Low consumption
2,.High brightness
| Dimension | 40.3*16*7mm |
| Surface color | Black /Grey /white |
| epoxy color | white |
| Emitting color | Blue |
Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
|
Emitting Color |
Test Condition |
Wavelength(nm) |
Forward Voltage(V) |
Luminous Intensity(mcd) |
|||
|
(p) |
|
Typ |
Max |
Typ |
Max |
||
|
Amber |
IF=15mA |
600-605 |
30 |
1.9 |
2.0 |
90 |
100 |
|
Super green |
IF=15mA |
565-575 |
30 |
1.9 |
2.0 |
48 |
55 |
|
Super red |
IF=15mA |
620-625 |
20 |
1.8 |
2.0 |
110 |
130 |
|
Ultra red 1 |
IF=15mA |
620-625 |
20 |
1.8 |
2.0 |
200 |
210 |
|
Ultra red 2 |
IF=15mA |
620-625 |
20 |
1.8 |
2.0 |
300 |
350 |
|
High red |
IF=15mA |
638-660 |
20 |
1.8 |
1.9 |
15 |
20 |
|
Yellow green |
IF=15mA |
570-580 |
30 |
1.9 |
2.0 |
43 |
50 |
|
Yellow |
IF=15mA |
580-600 |
35 |
1.9 |
2.0 |
70 |
80 |
|
Blue |
IF=15mA |
465-475 |
40 |
2.95 |
3.0 |
150 |
200 |
|
Pure green |
IF=15mA |
515-525 |
40 |
2.95 |
3.0 |
600 |
640 |
|
White |
IF=15mA |
– |
– |
2.8 |
2.9 |
180 |
200 |
