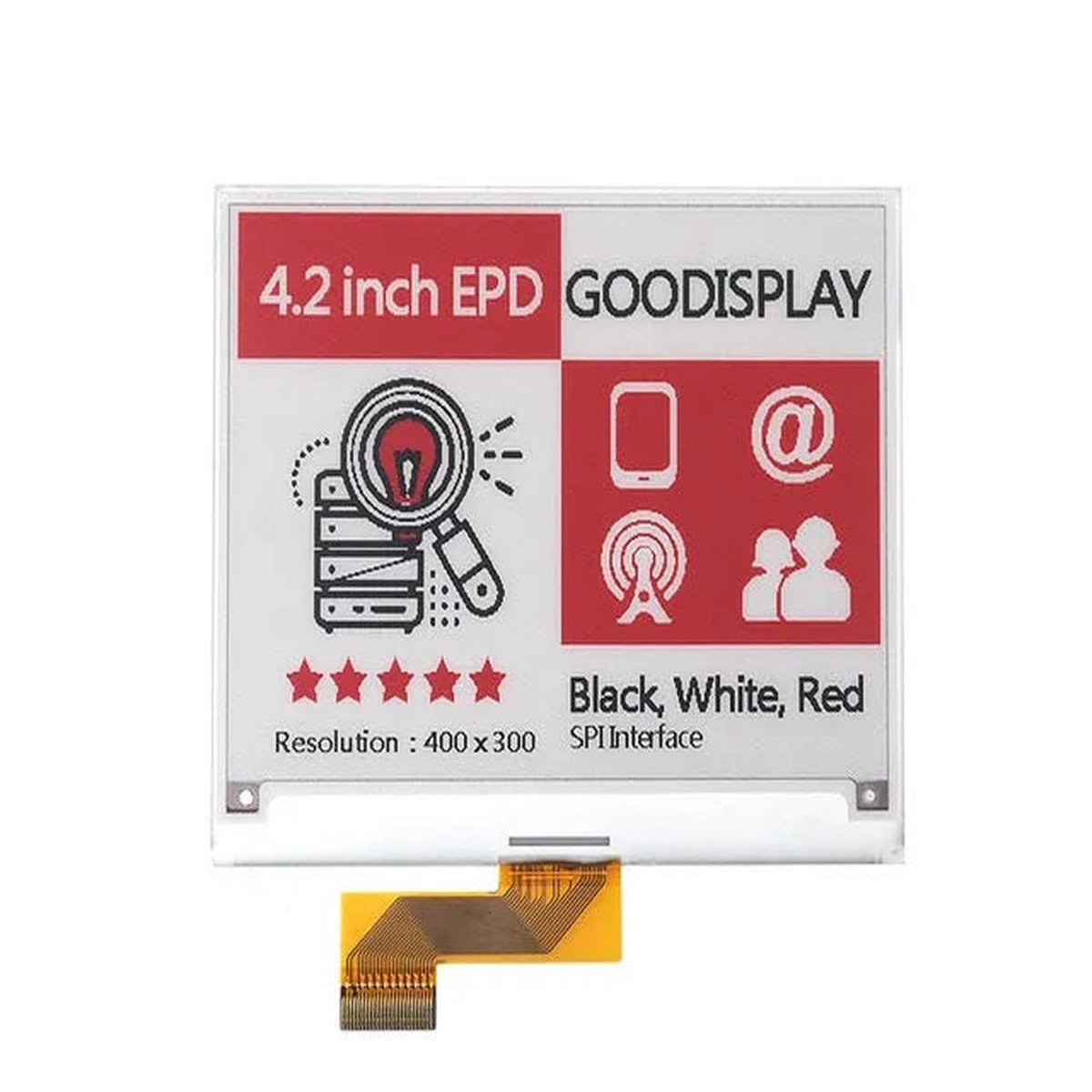

4.2-inch Tri-color E-Ink Monochrome Partial Update E-Paper Display

Name: 4.2-inch Tri-color E-Ink Monochrome Partial Update E-Paper Display
SKU: US31208379
Availability: InStock

Price

Shopping information

Description

Refresh Method:Full refresh for 15s, fastrefresh for 10s, partial refresh for 1.3s (Partial refresh only supports black-and-white display and does not support red)
Display direction:Horizontal or vertical

Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

PART NUMBER	GDEY042Z98
SIZE	4.2 inch
TYPE	Dot Matrix
IC	SSD1683
RESOLUTION	400×300
PPI	119.05
OUTLINE SIZE(mm)	91x77x1.2
ACTIVE SIZE(mm)	84.8×63.6
PIXEL PITCH(mm)	0.212×0.212
OPERATING TEMP.	0~40
STORAGE TEMP.	-25~60
CONNECTOR	24 Pin FPC
MAX GRAYSCALE	2
COLOR	Black,White, Red
INTERFACE	SPI
FULL REFRESH(s)	22
FAST REFRESH(s)	16
PARTIAL REFRESH(s)	1.3
POWER CONSUMPTIONOF THE REFRESH(mW)	24.75
STANDBY POWER CONSUMPTION(mW)	0.0165
