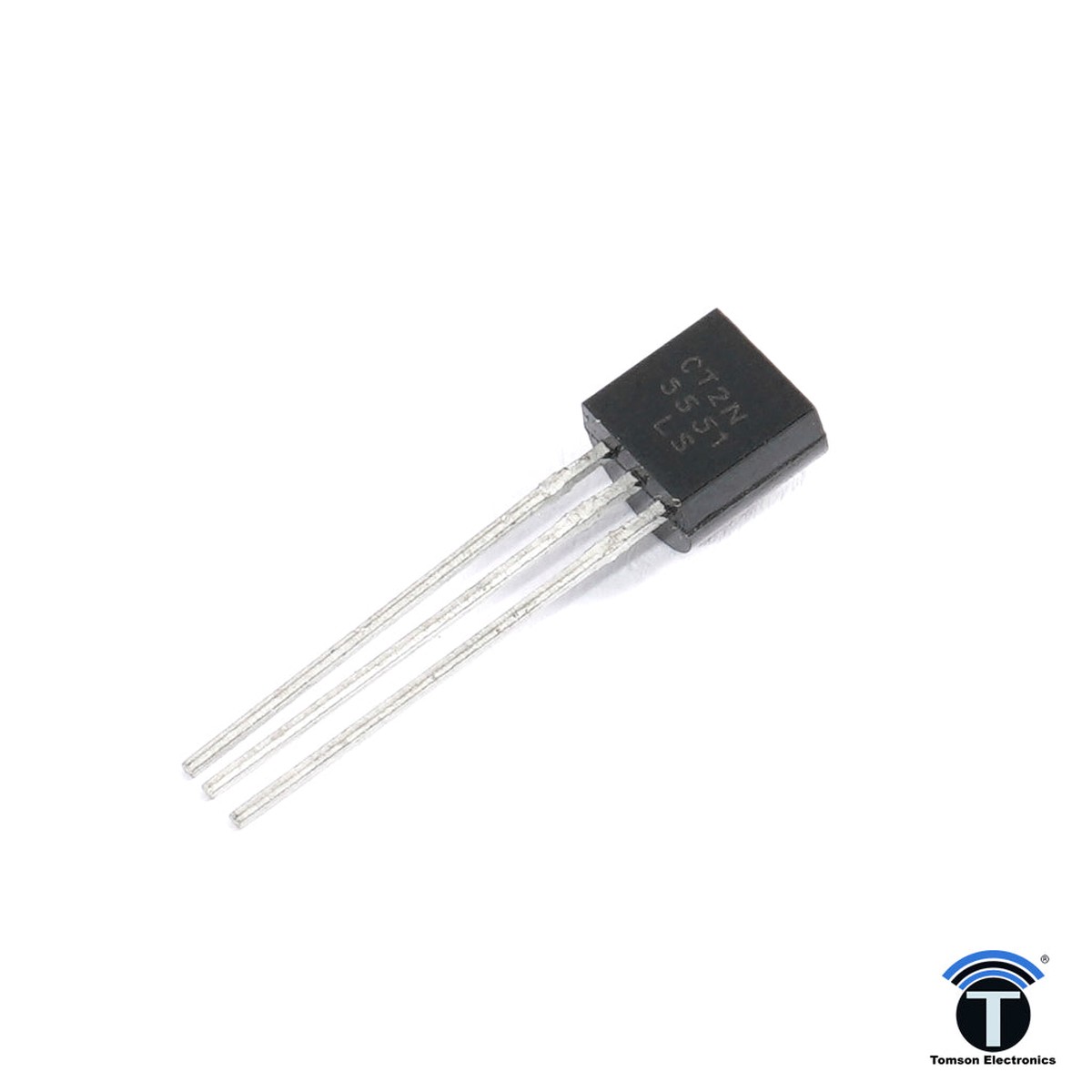

The 2N5551 CDIL NPN Transistor is a high-voltage, low-current transistor designed for general-purpose switching and amplifier applications. It is commonly used in audio amplifiers, voltage regulation circuits, and signal processing applications.

Key Features:

• NPN Bipolar Junction Transistor (BJT): Suitable for signal amplification and switching.
• High Voltage Handling: Supports up to 160V collector-emitter voltage.
• Low Noise: Ideal for audio and small-signal applications.
• Fast Switching Speed: Optimized for high-frequency circuits.
• Low Collector Current: Operates efficiently with a maximum of 600mA.
• Compact TO-92 Package: Easy to integrate into PCB designs.

Package Includes:

• 1 x 2N5551 CDIL NPN Transistor

Specifications:

• Transistor Type: NPN
• Collector-Emitter Voltage (VCE): 160V
• Collector-Base Voltage (VCB): 180V
• Emitter-Base Voltage (VEB): 6V
• Collector Current (IC): 600mA
• Power Dissipation: 625mW
• Gain (hFE): 80-250
• Operating Temperature: -55C to +150C
• Package Type: TO-92

Applications:

• Audio Signal Amplification
• Switching Circuits
• Voltage Regulation
• Pulse and Logic Circuits
• RF and High-Frequency Circuits

Datasheet:

Download the full 2N5551 datasheet for complete technical specifications.
