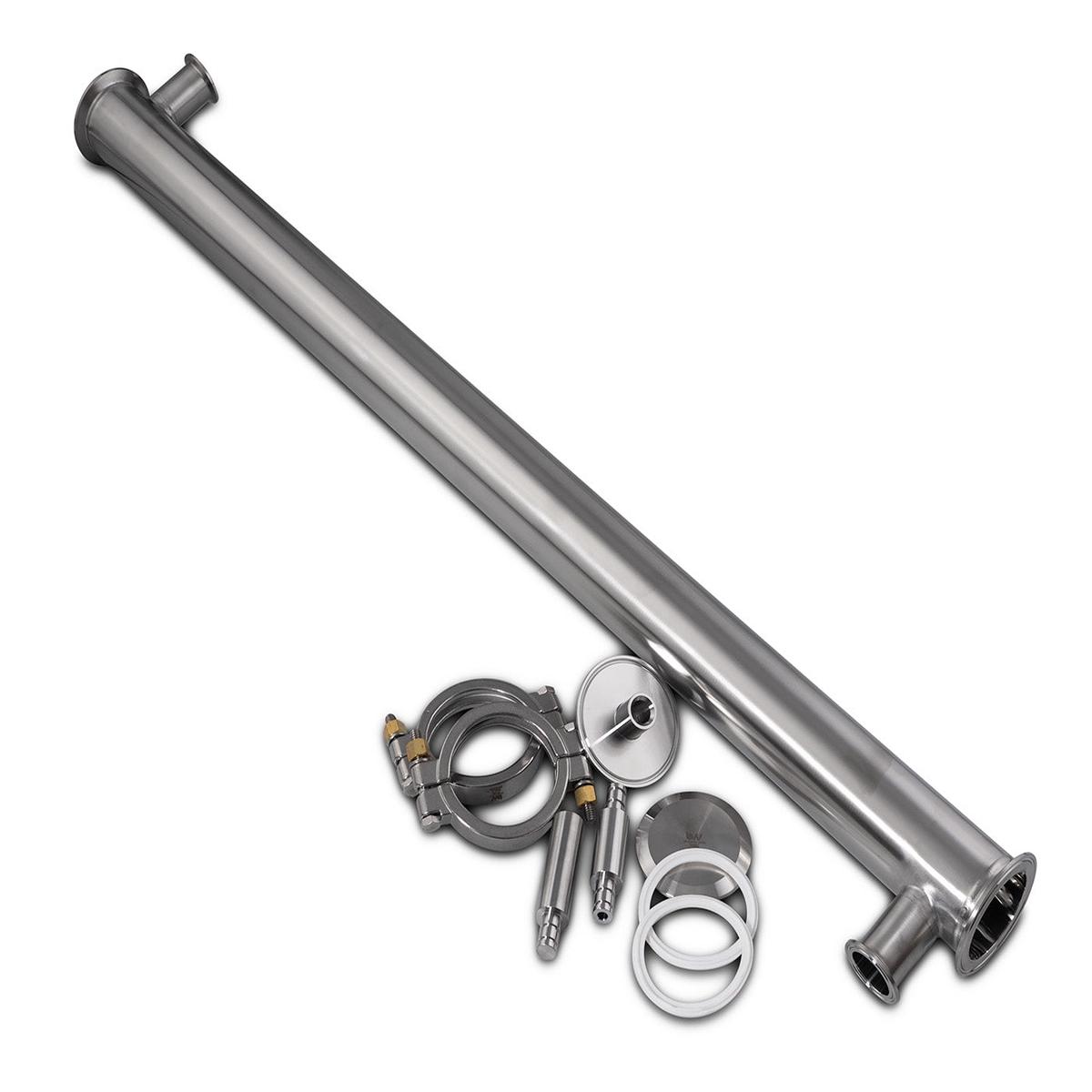

2540 Membrane Housing Kit

This is a membrane housing kit designed to fit Snyder 2540 membranes. The inner diameter of the housing measured 2.519′ (64MM) and measured 46″ fromend to end. The opposing 1.5″ tri-clamp ports protrude 3.5″ from the center of the housing and are spaced 42.5″ apart measured from the center of each ferrule. This housing kit includes 3″ tri-clamp end caps that accept the membrane permeate adapters to perfectly support the membrane within the housing. The permeate adapters include 014 Viton O-ringsto perfectly seal the permeate stream from the retentate stream. To complete the housing this kit Includes 2X 3″ High pressure Clamps and 2X 3″ Silicone gaskets.

Components:

• 1X 2540 Membrane housing (2X 3″ TC ports, 2X 1.5″ TC ports
• 1X 3″ Permeate endcap with 3/8″ NPT outlet
• 1X 3″ Solid end cap
• 1X Solid Membrane Insert
• 1X Membrane Permeate Insert
• 2X 3″ High pressure Clamps
• 2X3″ Silicone Tri-clamp Gaskets
• 6X 014 Viton O-Rings
