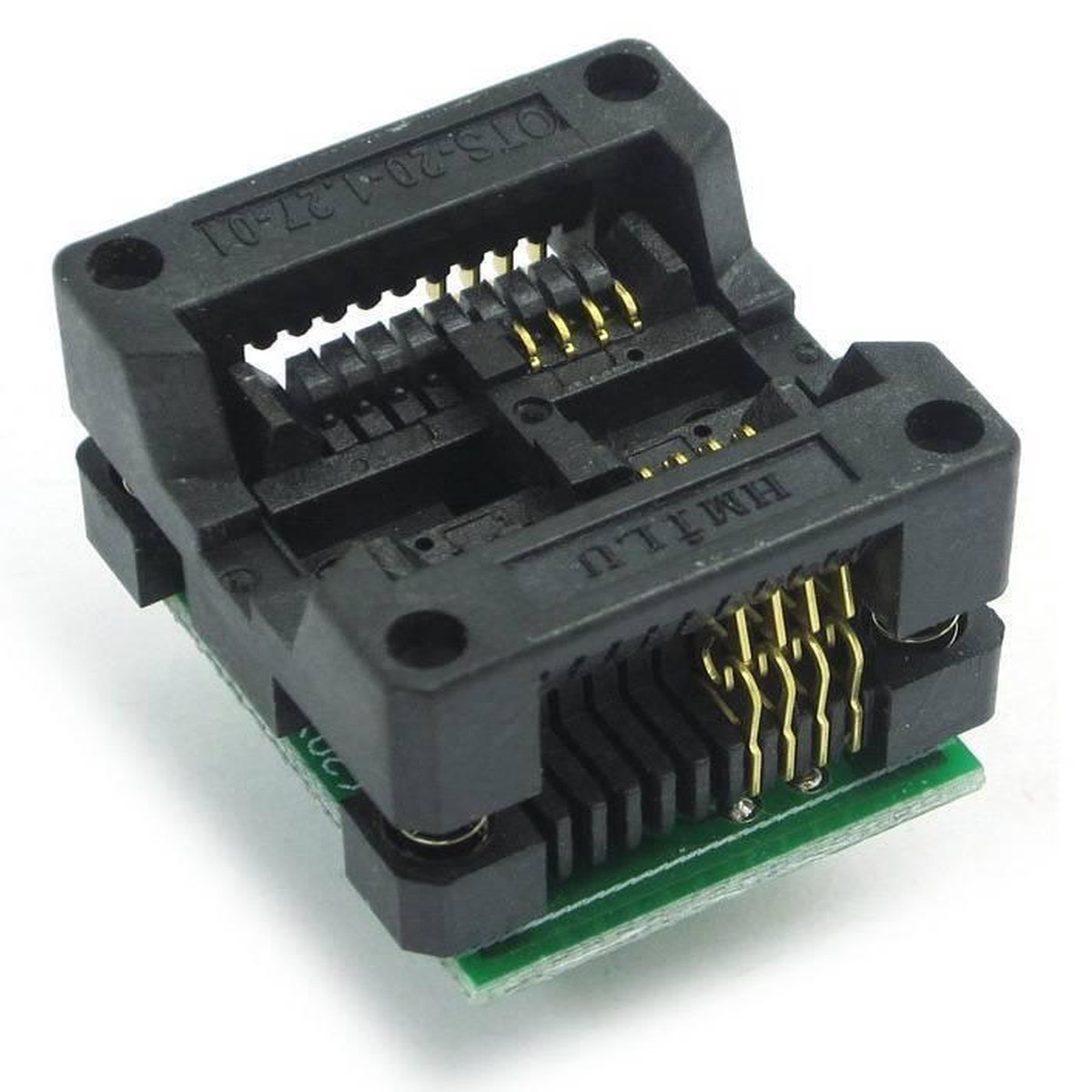

This is SOP8 To DIP8 200mil IC Test and Burn-In Socket. It applies to all the chips of SOP8 that has a wide body. This chip prog socket is brand new and high quality. It is RoHS compliant.

Features of200-209 mil SOP8 Programmer Adapter Socket Converter Module:

1. SOP8 to DIP8 IC socket adapter 200ml to 209ml IC’s
2. Applications: Programmer,test socket,for SOP8 IC chips.
3. Package:SOP8/SOIC8/SO8,lead pitch 1.27mm,Chip body width is 5.27mm
4. Features:SOP8 to DIP8baseplate lead to double row DIP 8P,lead pitch 2.54mm(100mil),width 1.52cm(600mil)
5. Use for OnePro/MiniPro/DreamPro programmer.
6. SMD Flash burn
7. 8M bits(=1M bytes) or more 25 SPI FLASH series are Wide SOP8 package
8. 4M bits(=512k bytes) or less 25 SPI FLASH series are narrow SOP8 package
9. 24C02 and 24EEPROM chips are narrow SOP8 package

Package Included:

1. 1PC xSOIC SOP8 200ml 209 to DIP8 EZ Programmer adapter Socket
