APPLICATION:

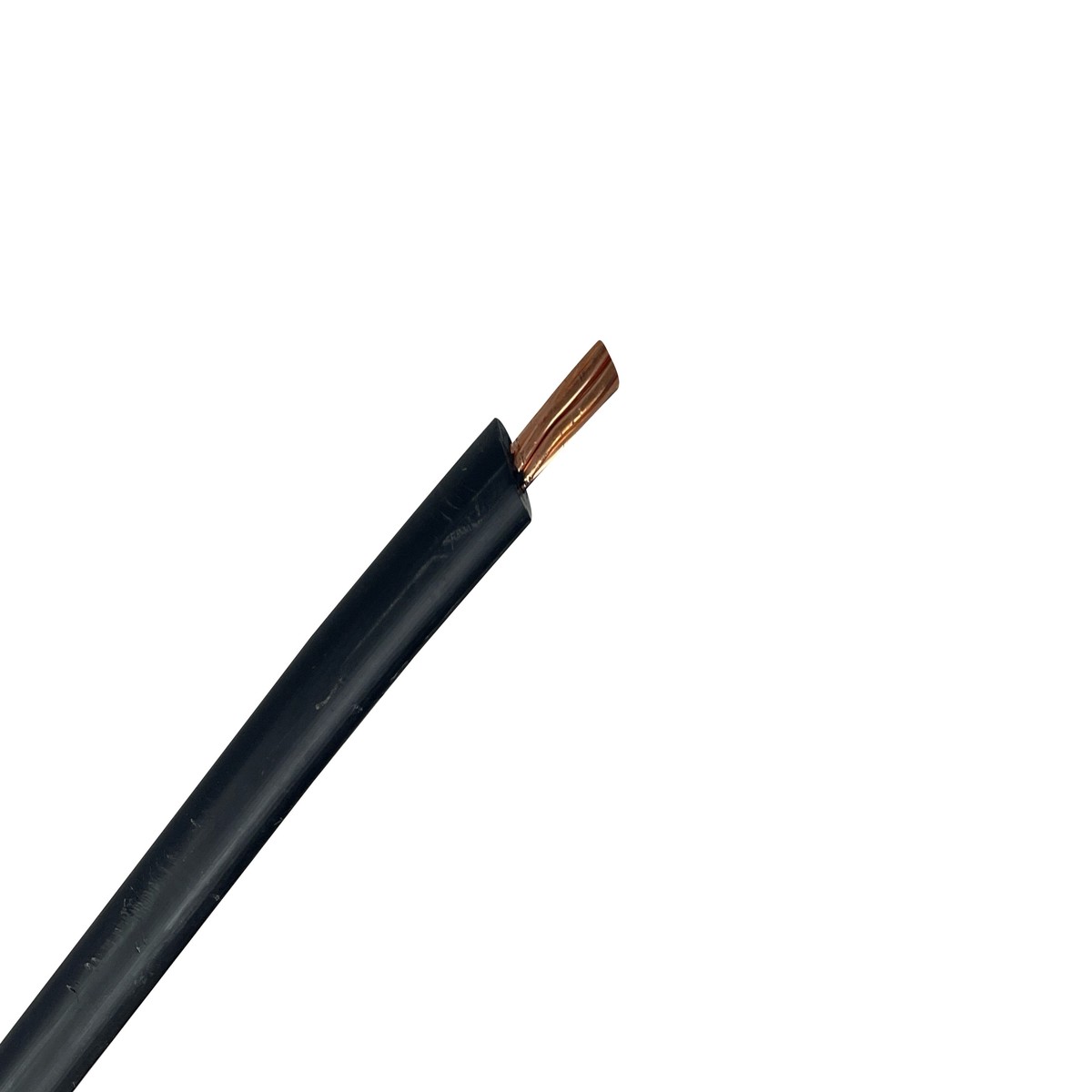

Transformer Riser Wire is suitable for use as un-insulated transformer risers at voltages up to and including 13,200 volts. Although not treated as insulation, the covering on Transformer Riser Wire does reduce faults due to atmospheric conditions, shorts caused by excessive vibrations and faulting caused by objects crossing the leads.a

CONDUCTOR:
Stranded soft drawn bare copper conductor, per ASTM B3 or B8

INSULATION:
Cross-linked Polyethylene Insulation (XLP).

COLOR:
Black

CONDUCTOR DIAMETER:
0.292 in. / 7.42 mm

OVERALL DIAMETER:
0.512 in. / 13.00 mm

WEIGHT:
0.272 lbs p/ft

All values are nominal and subject to correction.
