APPLICATION:

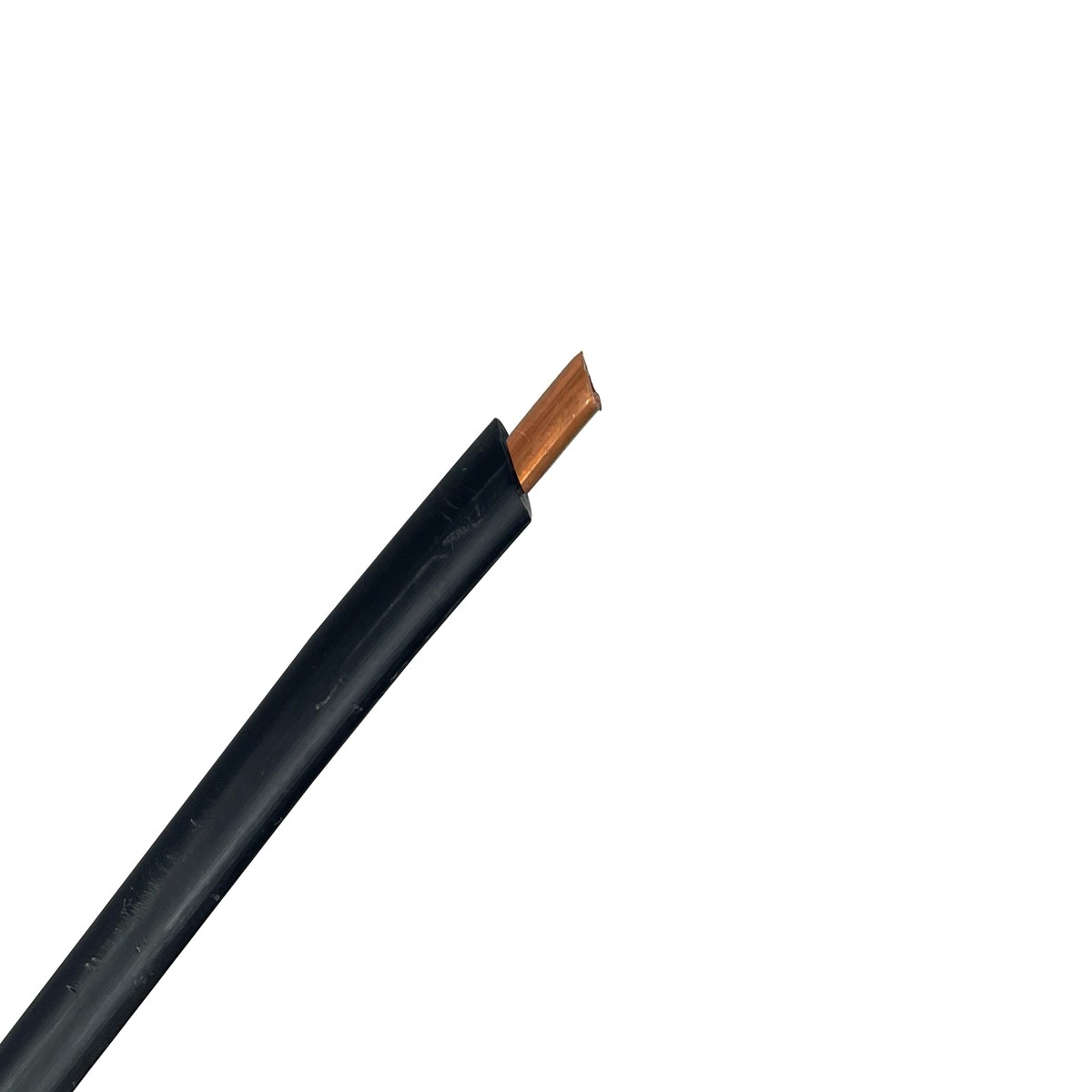

Transformer Riser Wire is suitable for use as un-insulated transformer risers at voltages up to and including 13,200 volts. Although not treated as insulation, the covering on Transformer Riser Wire does reduce faults due to atmospheric conditions, shorts caused by excessive vibrations and faulting caused by objects crossing the leads.

CONDUCTOR:
Solid soft drawn bare copper conductor, per ASTM B3 or B8

INSULATION:
Black high molecular weight polyethylene insulation, (HMWPE).

COLOR:
Black

CONDUCTOR DIAMETER:
0.258 in. / 6.55 mm

OVERALL DIAMETER:
0.478 in. / 12.14 mm

WEIGHT:
0.252 lbs p/ft

All values are nominal and subject to correction.
