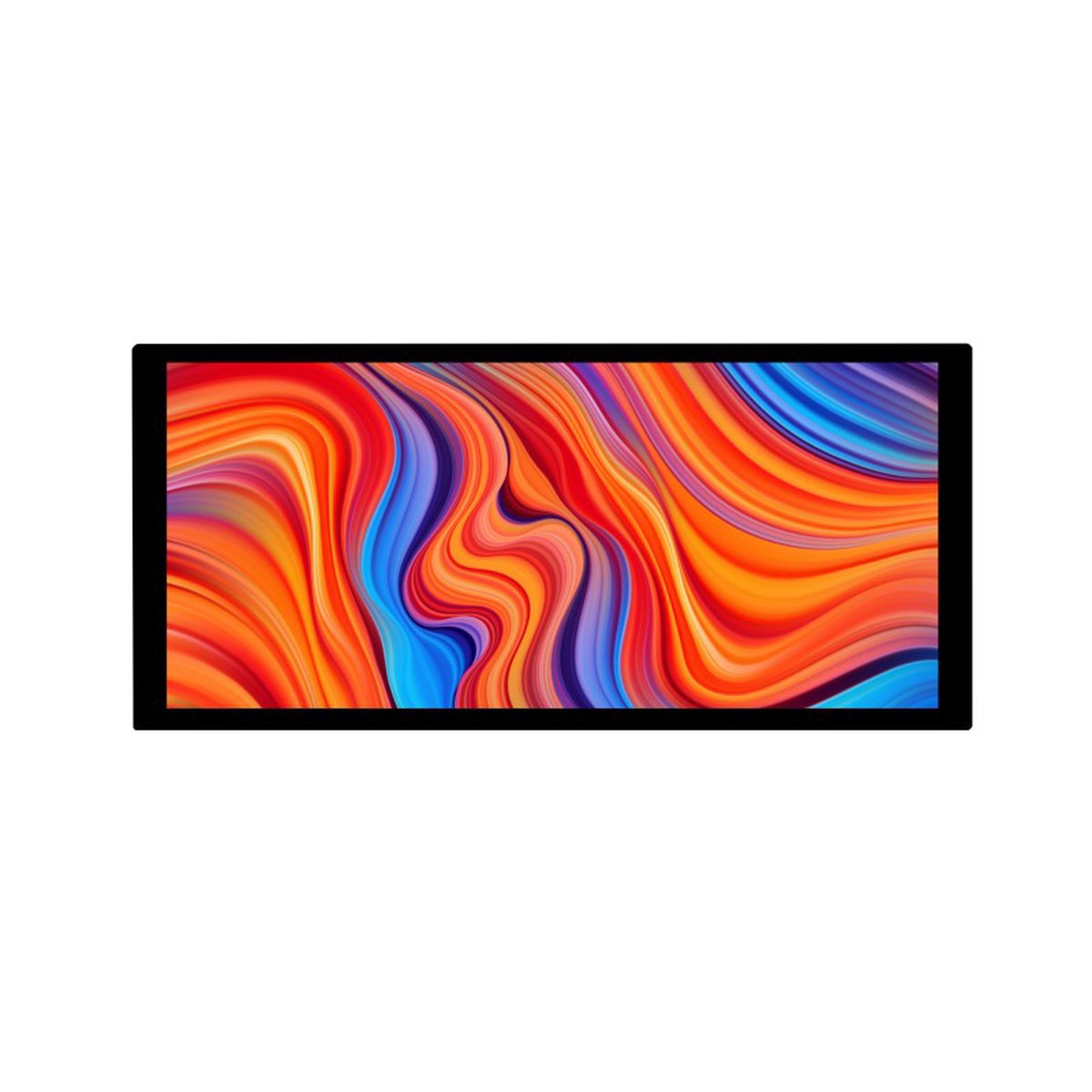

10.4 QLED Touch Display

High Resolution|Multi-Point Touch|Full Color

Size10.4″	Resolution1600720	Display PortHDMI	Display PanelQLED Quantum Dot	Viewing Angle170
Touch TypeCapacitive	Touch Points10-Point	Touch TypeUSB Type-C	Touch PanelToughened Glass	Touch Panel TechOptical Bonding
BrightnessSupports DCC/CI	OSD MenuBrightness/Contrast	Audio Output13.5mm Jack	Audio Output24PIN Header	Brightness600cd/m

Device System Support

Raspberry Pi Supports Raspbian, 10-points touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free Supports all versions of Raspberry Pi Jetson NanoSupports Ubuntu, single point touch, driver freePCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-points touch, driver freeGame ConsoleXbox360, PS4, Switch…

Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano

Working With PC

for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178 Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 94%, NTSC 94%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment

Interface Introduction

Dimensions

Resources

Wiki:www.waveshare.com/wiki/10.4HP-CAPQLED

Package Contains:

Weight: 0.769 kg

1. 10.4HP-CAPQLED 1
2. HDMI flat cable ~1m 1
3. USB-A to USB-C cable ~1m 1
4. Button board 1
5. Button board cable 1
6. USB to Type-C adapter (B) 1
7. USB to Type-C adapter (C) 1
8. HDMI to Micro HDMI adapter 1
9. HDMI adapter 1
10. Screws pack 1
11. OPTIONS 5V 3A Type C Power supply 1
