APPLICATION:

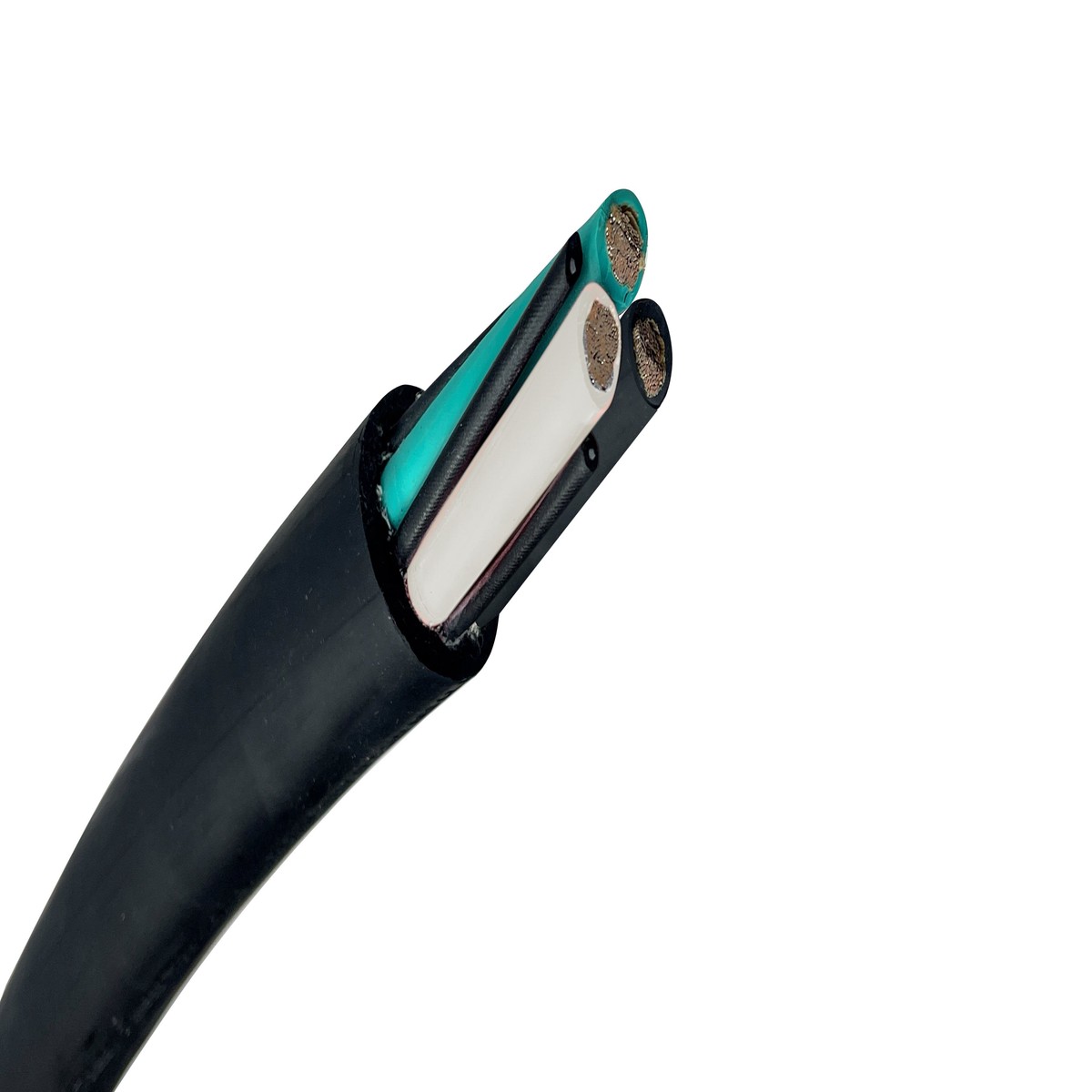

Type W Cable is a heavy-duty, flexible portable power cable engineered for demanding industrial, commercial, and temporary power applications. Built with robust construction and a high 2000-volt rating, it excels in challenging environments due to its excellent resistance to oil, sunlight, flame, weather, impact, and abrasion, operating effectively from -40C to +90C. While primarily a portable solution, single-conductor Type W can also be dual-rated as RHH/RHW-2 for more permanent wiring uses.

CONDUCTOR:
Soft drawn flexible stranded tinned copper wires.

SEPARATOR:
Tape separator between conductor and insulation.

INSULATION:
Ethylene-propylene rubber (EPR).

JACKET:
Black heavy duty CPE thermosetting compound, impact and abrasion resistant.

CONDUCTOR COLORS:
Black, White Green

FEATURES:
Excellent rated flexibility at -40C to 90C, water resistant and flame retardant, ozone, sunlight, oil, grease, weather, chemical and heat resistant.

BENDING RADIUS:
9.54 In.

AMP RATING:
@ 90C – 234 Amps

Ampacities based on 90C Conductor and 30C Ambient temperature per table 400.5(A)(2) of the National Electrical Code.
